In 1977, Nikon started using the automatic indexing of the lenses. This replaces the manual indexing done before by alining the metal fork on the lens with the camera pin.
See this great article about the Nikon evolution.

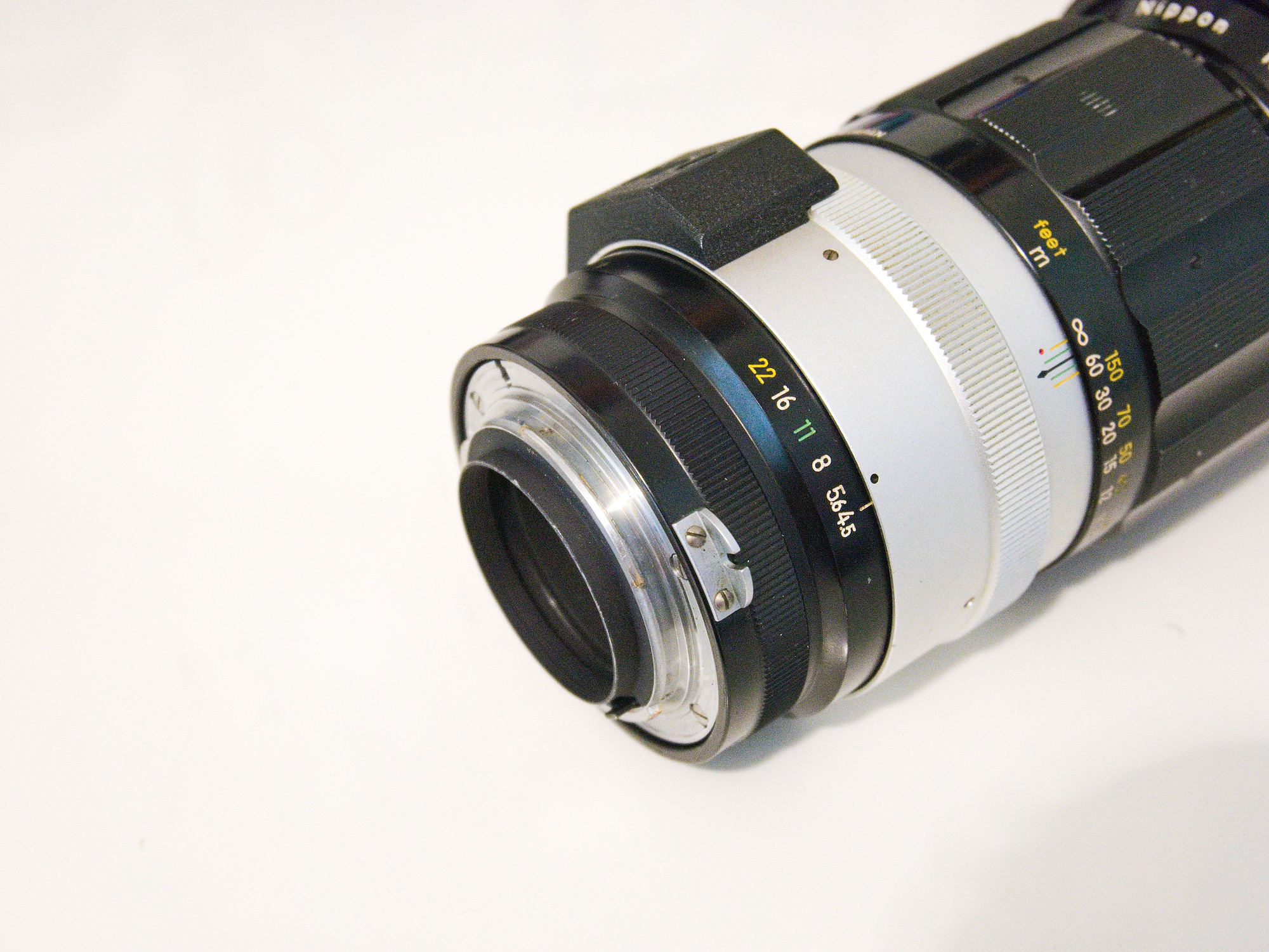

This is a original non-AI lens mount of a NIKKOR-H 300mm f/4.5:

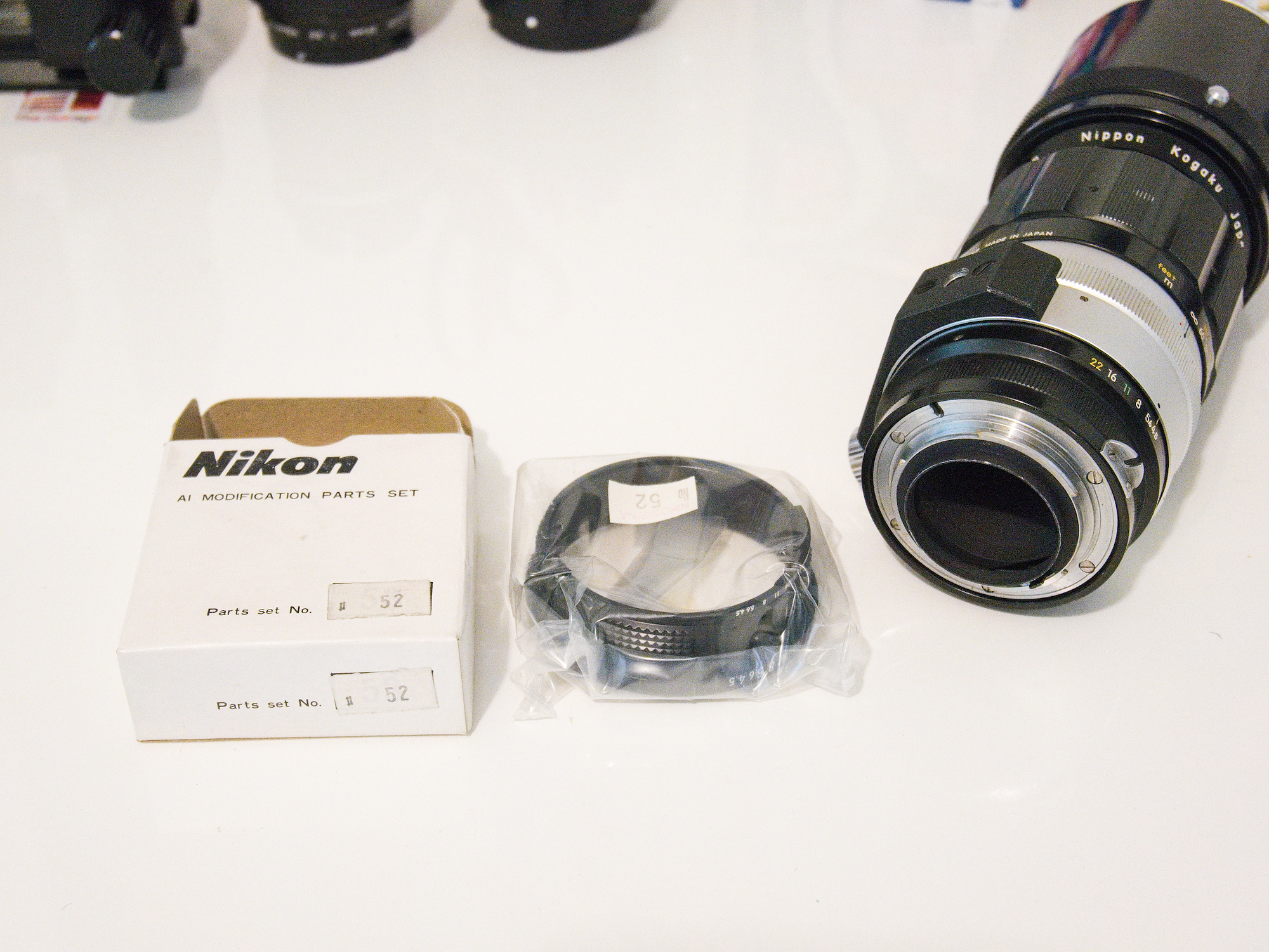

Nikon provided conversion kits to convert lenses before 1977. According to the Nikon Lens List, this lens is from 1970 and requires the conversion kit #53.
I only found #52 in a camera store in Finland, which is for a newer model of this lens.

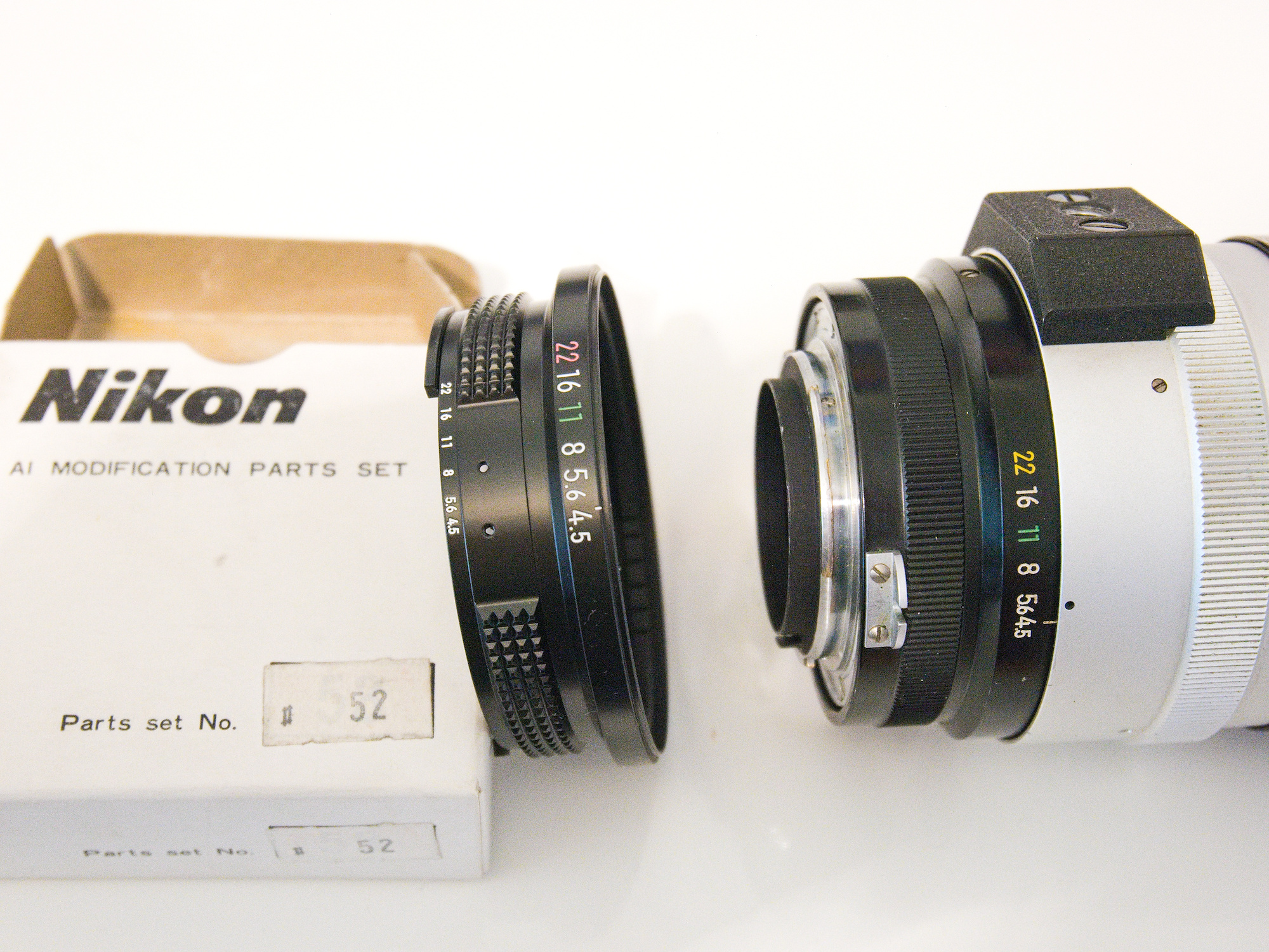

The kit #52 differs from #53 that the screw to connect to the aperture lever is not used anymore and replaced by a notch in the aperture ring at the same position. To make #52 work with this lens, a small hole is drilled and tapped to use the original screw:

The lens mount is unscrewed and carefully pulled out:

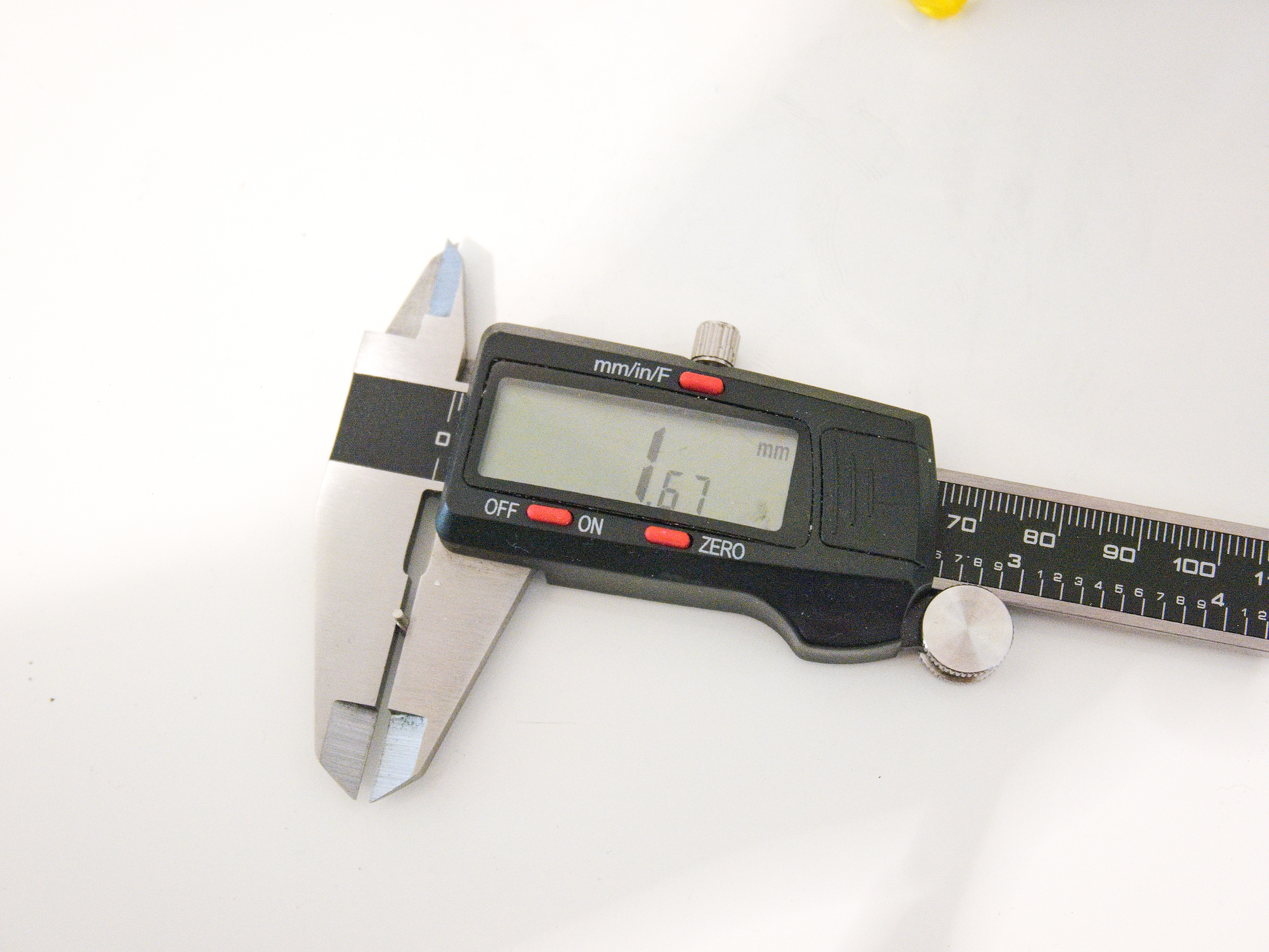

The screw for the aperture link is M1.7x0.35:

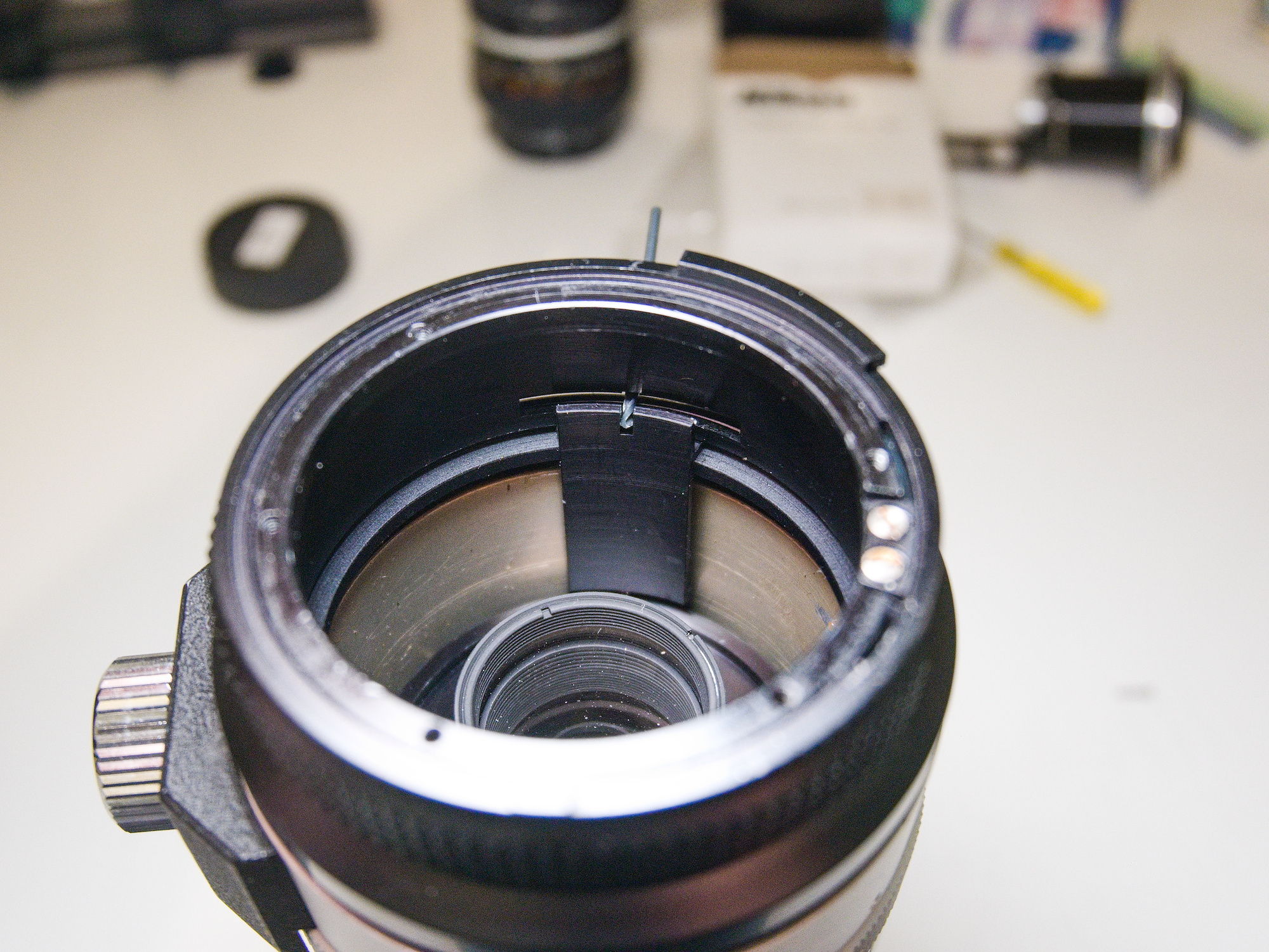

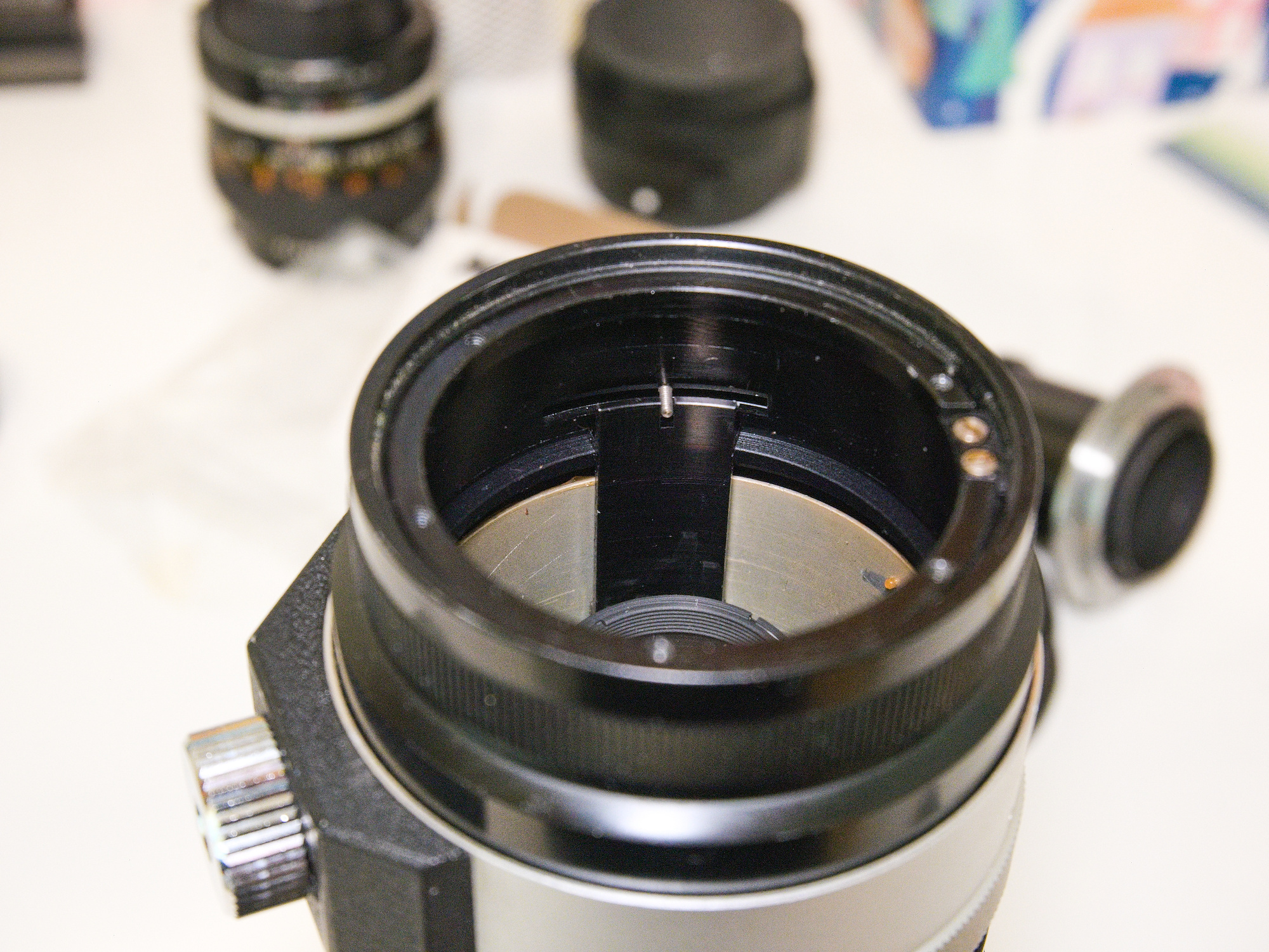

And connects to the lever on the inside:

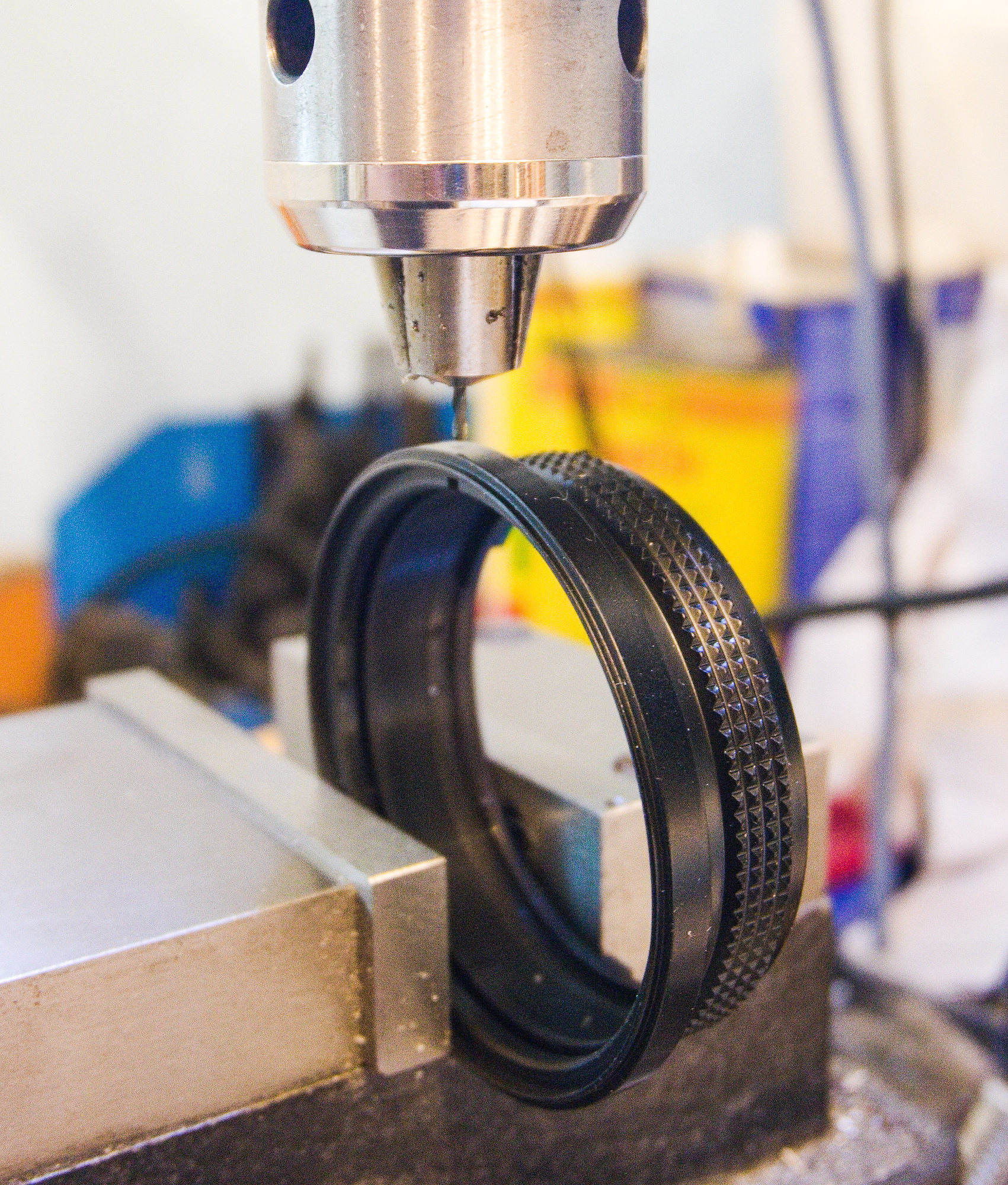

The 1.5mm hole is drilled at the notched position in the new aperture ring from conversion kit #52. Ideally the hole should be 1.35mm for a M1.7 thread but the 1.5mm drill was the closest I had and for this purpose good enough:

The hole must match the position of the original lens ring:

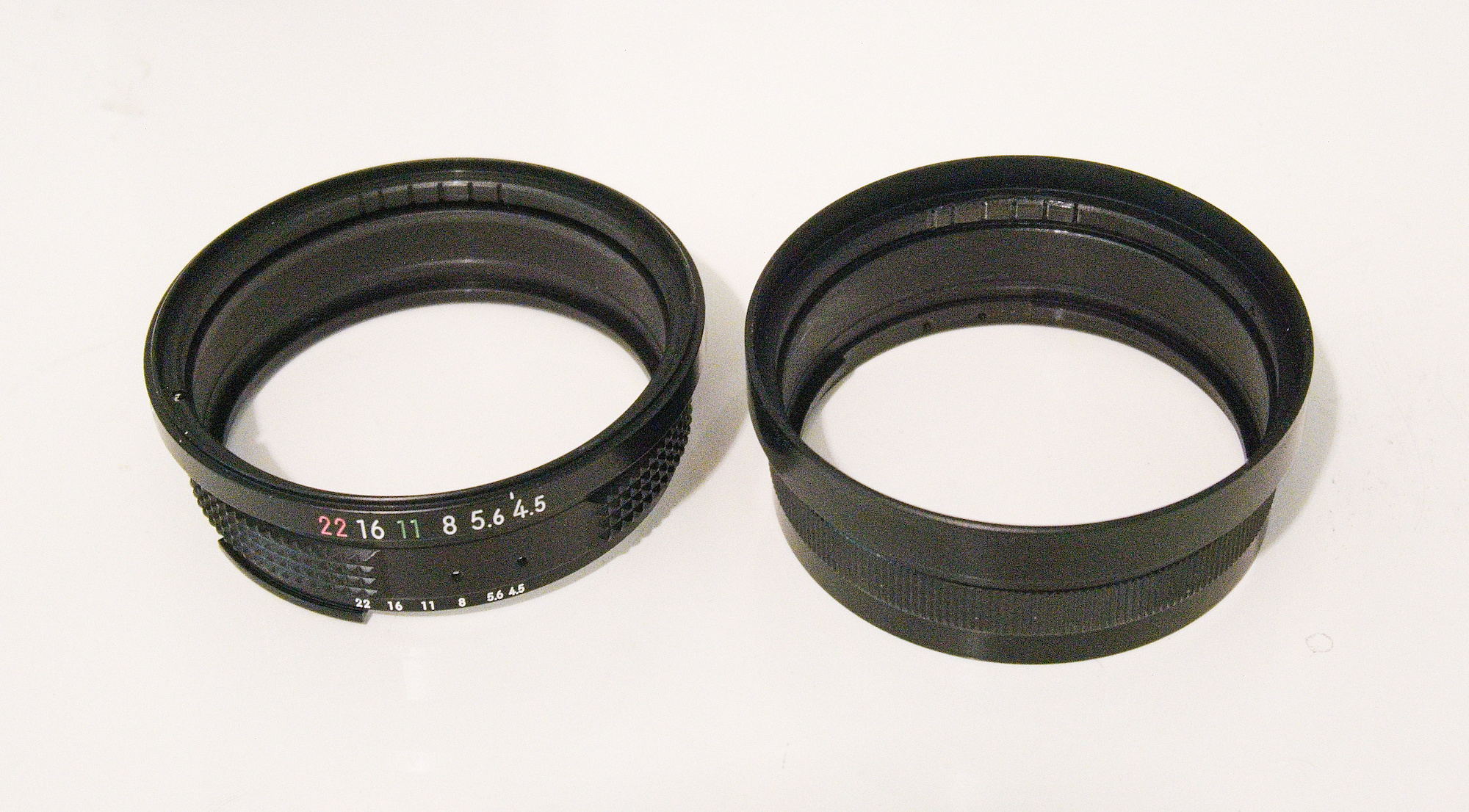

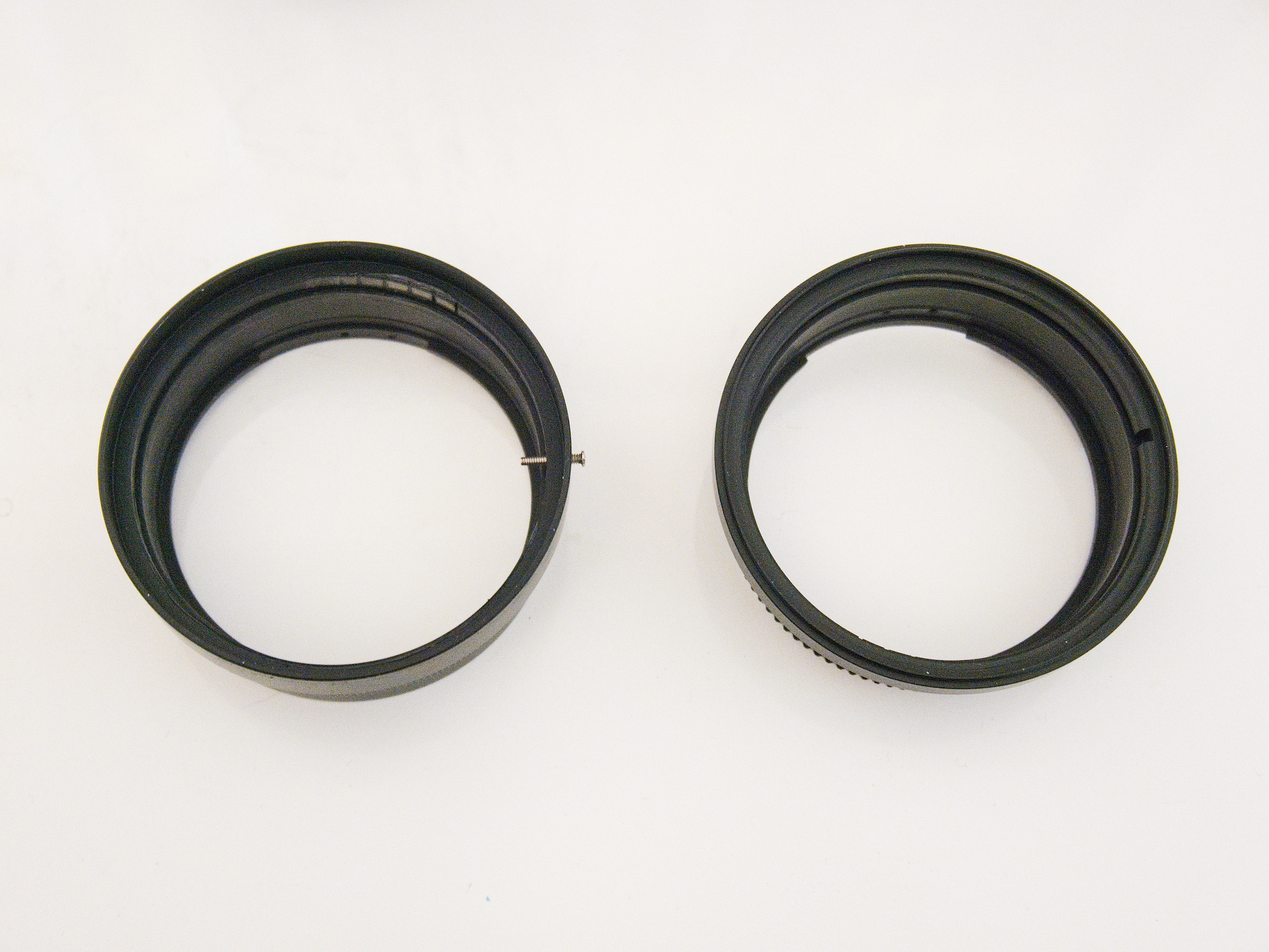

The other difference between kit #52 and #53 is that the aperture click notches are on the opposite side:

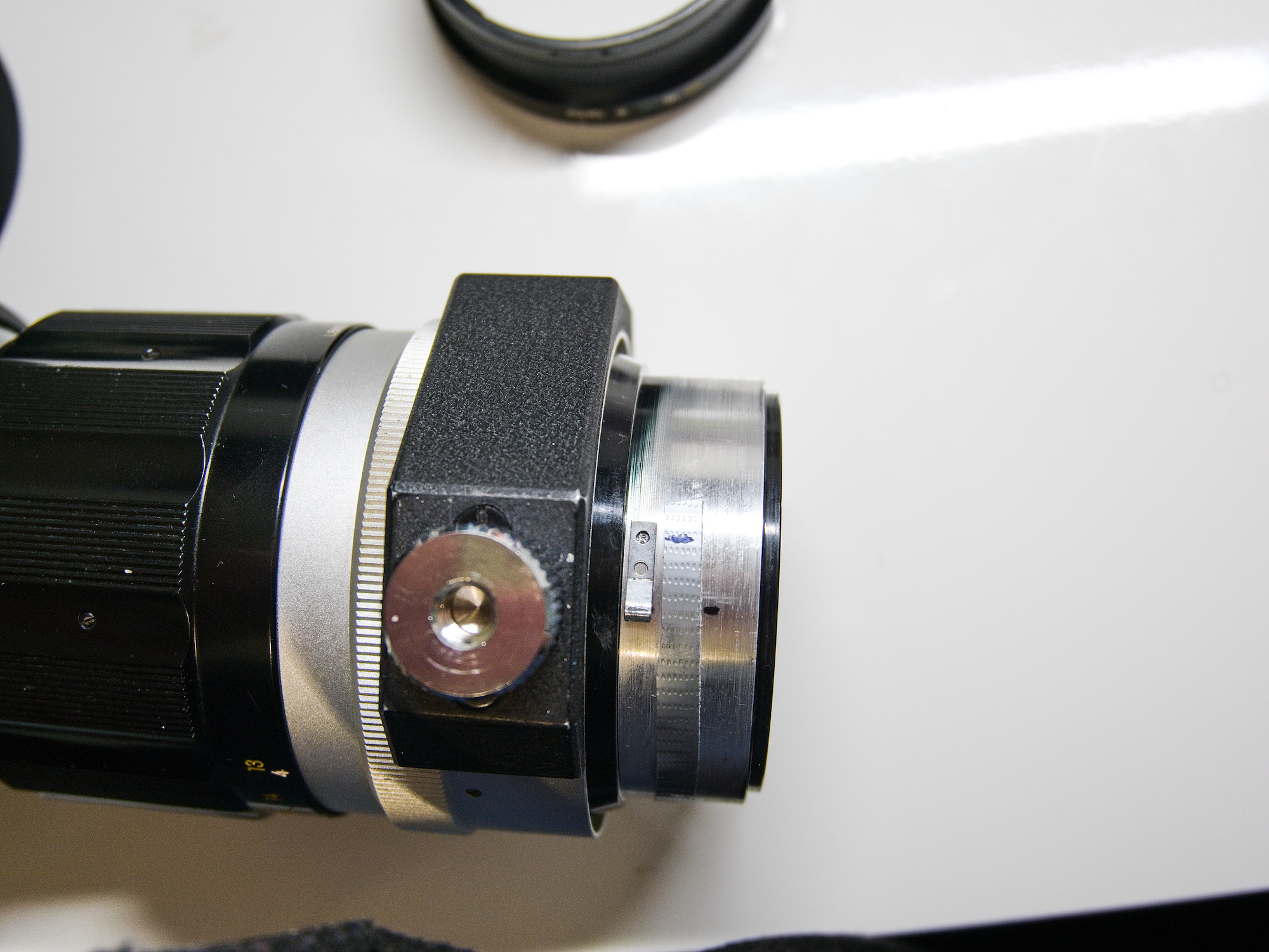

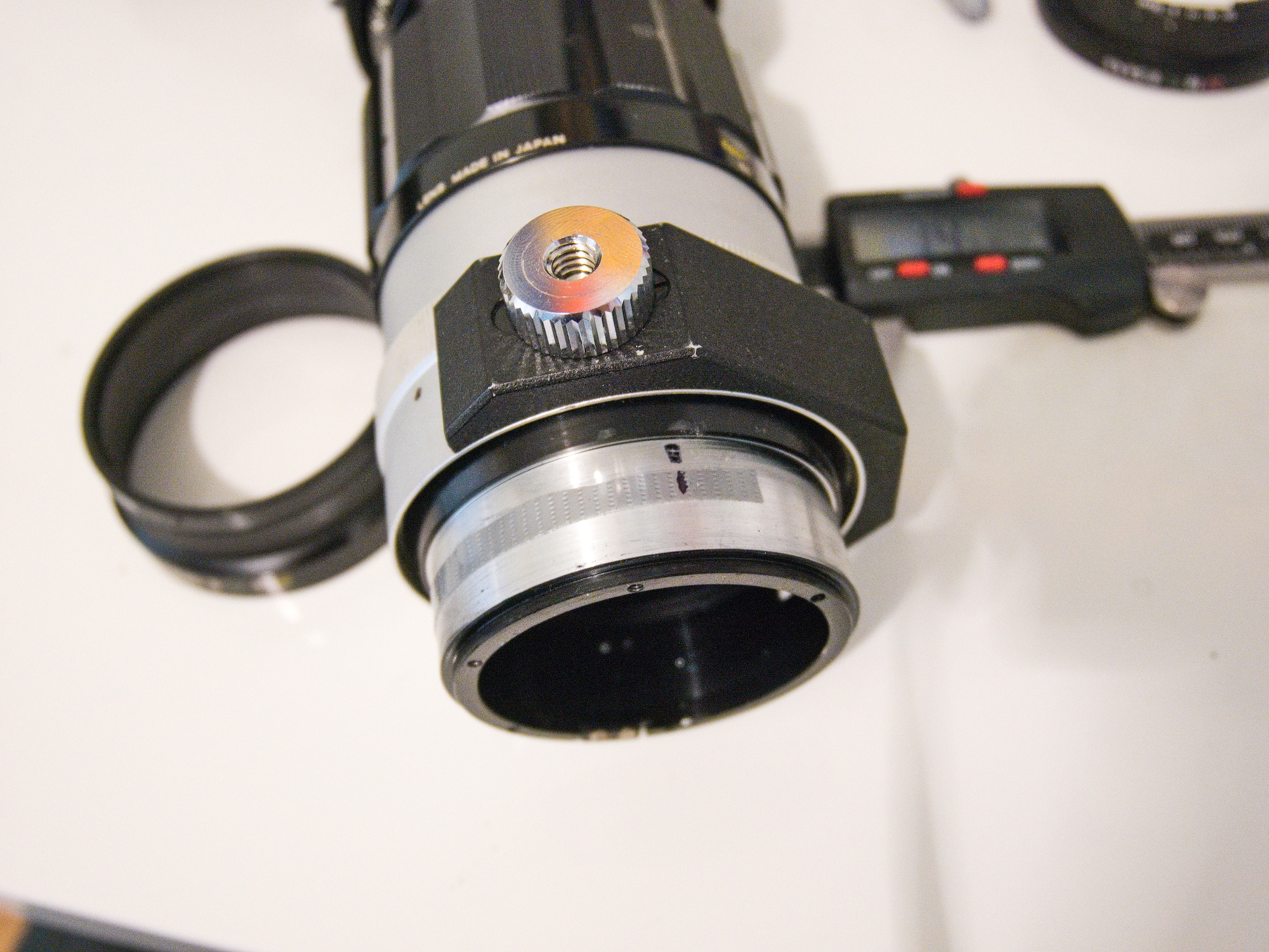

The aperture click spring needs to be moved. To get the correct distance, a non stretchy tape like 🦆 tape, is used to mark the position:

From the start of the first screw to the correct position:

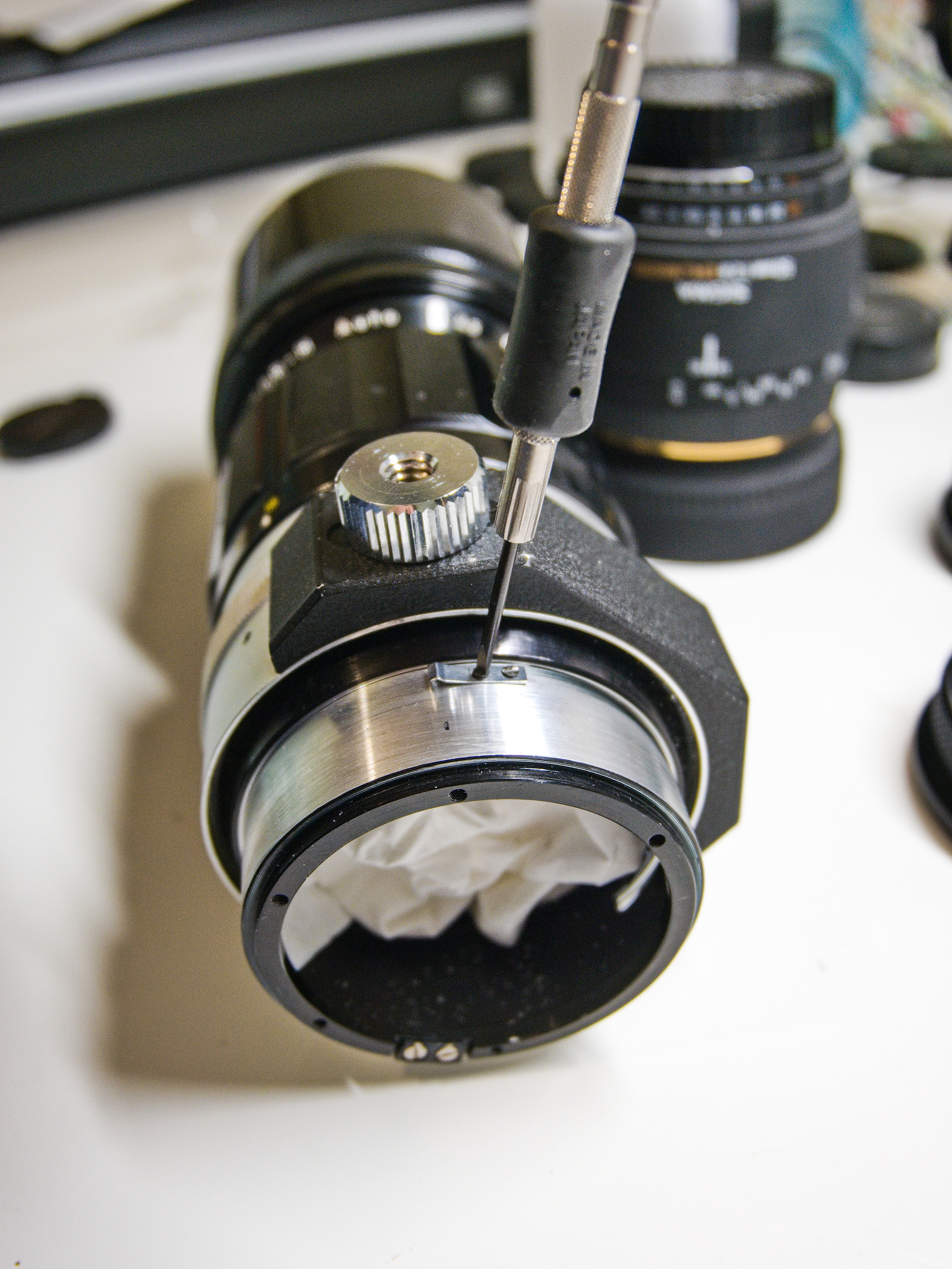

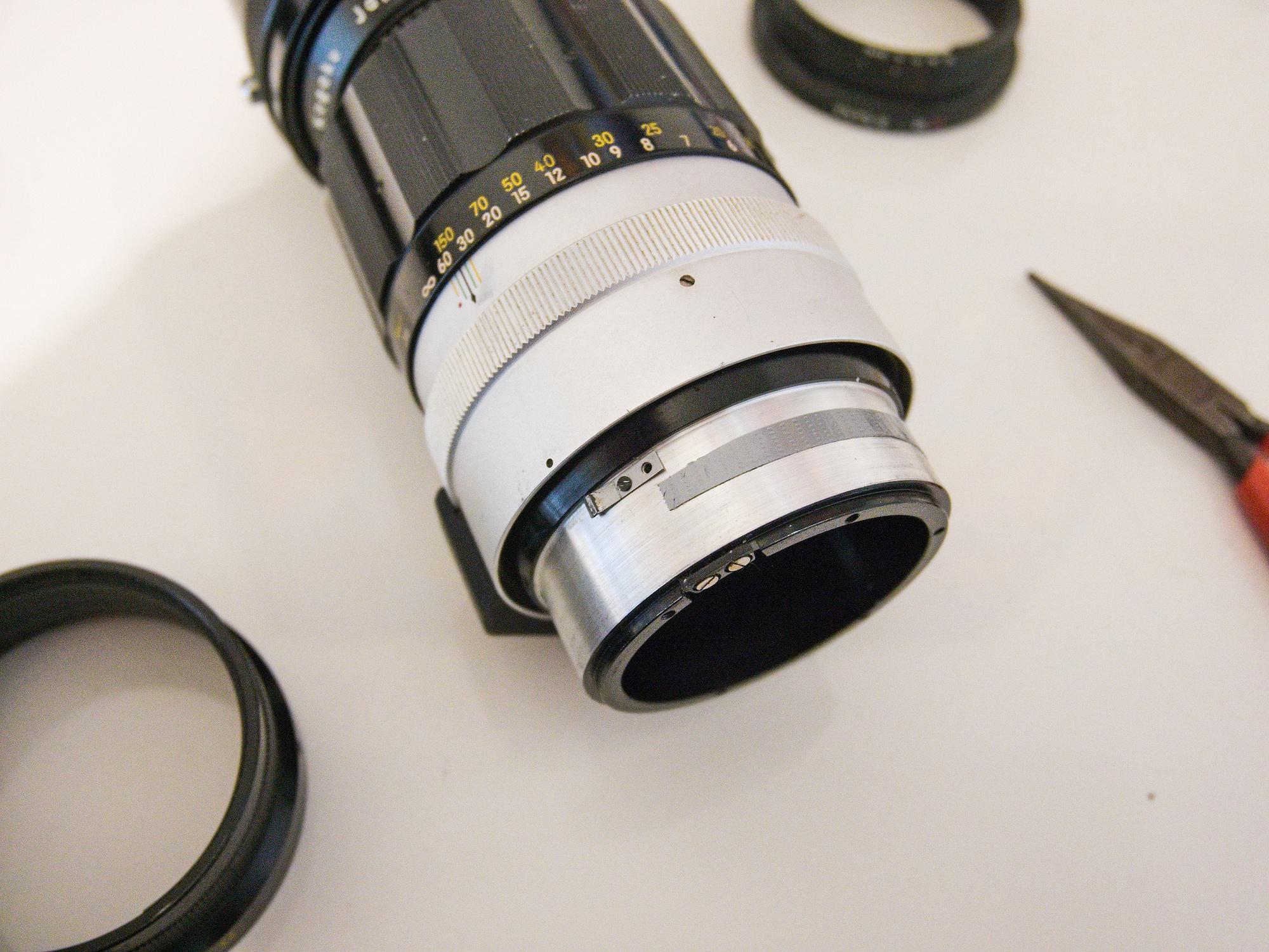

This is the position for the screw hole:

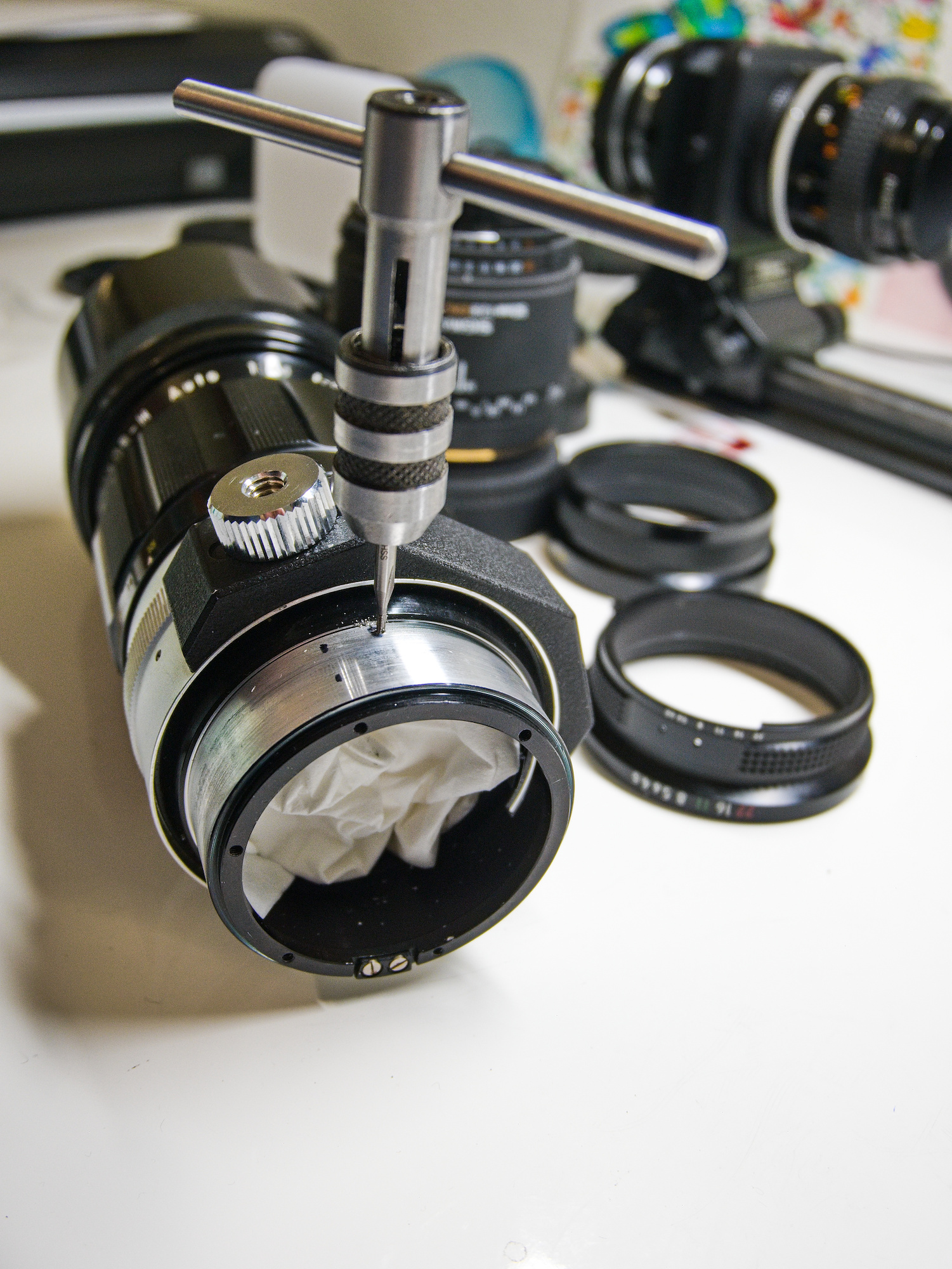

The screw size is M1.4. For this thread size, a 1.1mm for the thread hole should be used, but I don't have those drill sizes, so I used the 1mm as it will work too since it is soft Aluminium.

Attach the aperture click spring at the new position:

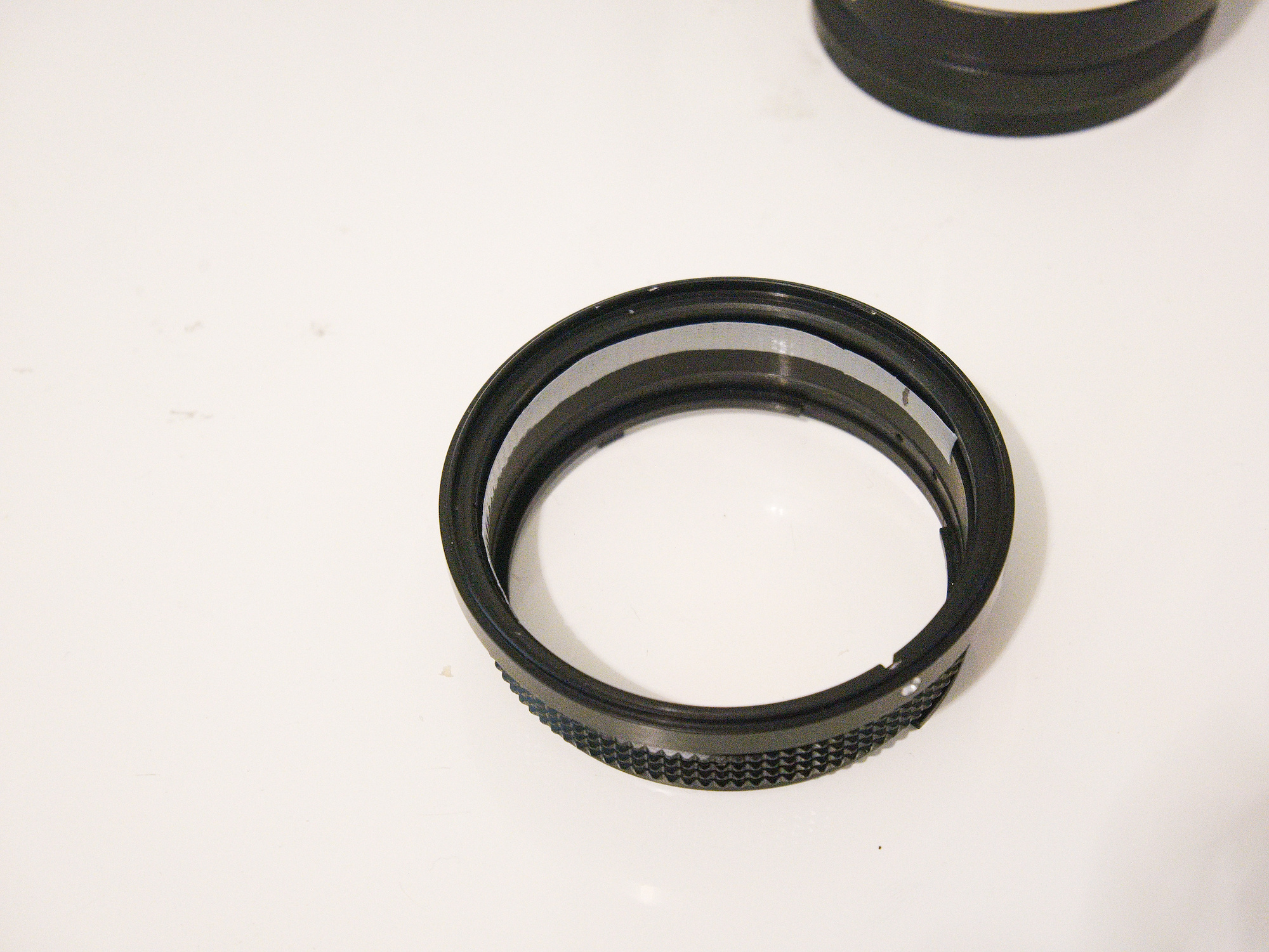

Add a little bit of grease to the inside the Aperture ring and put it on:

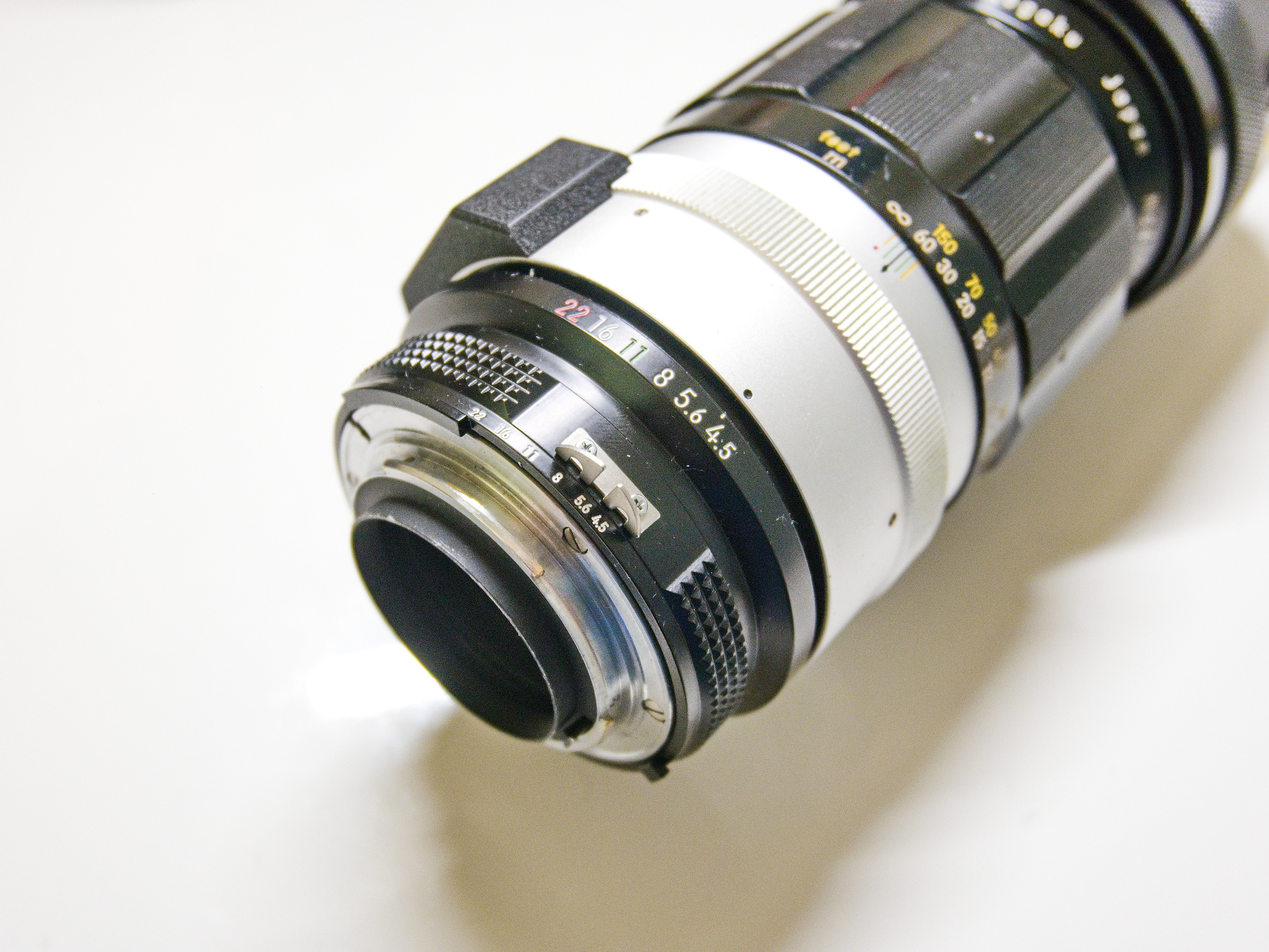

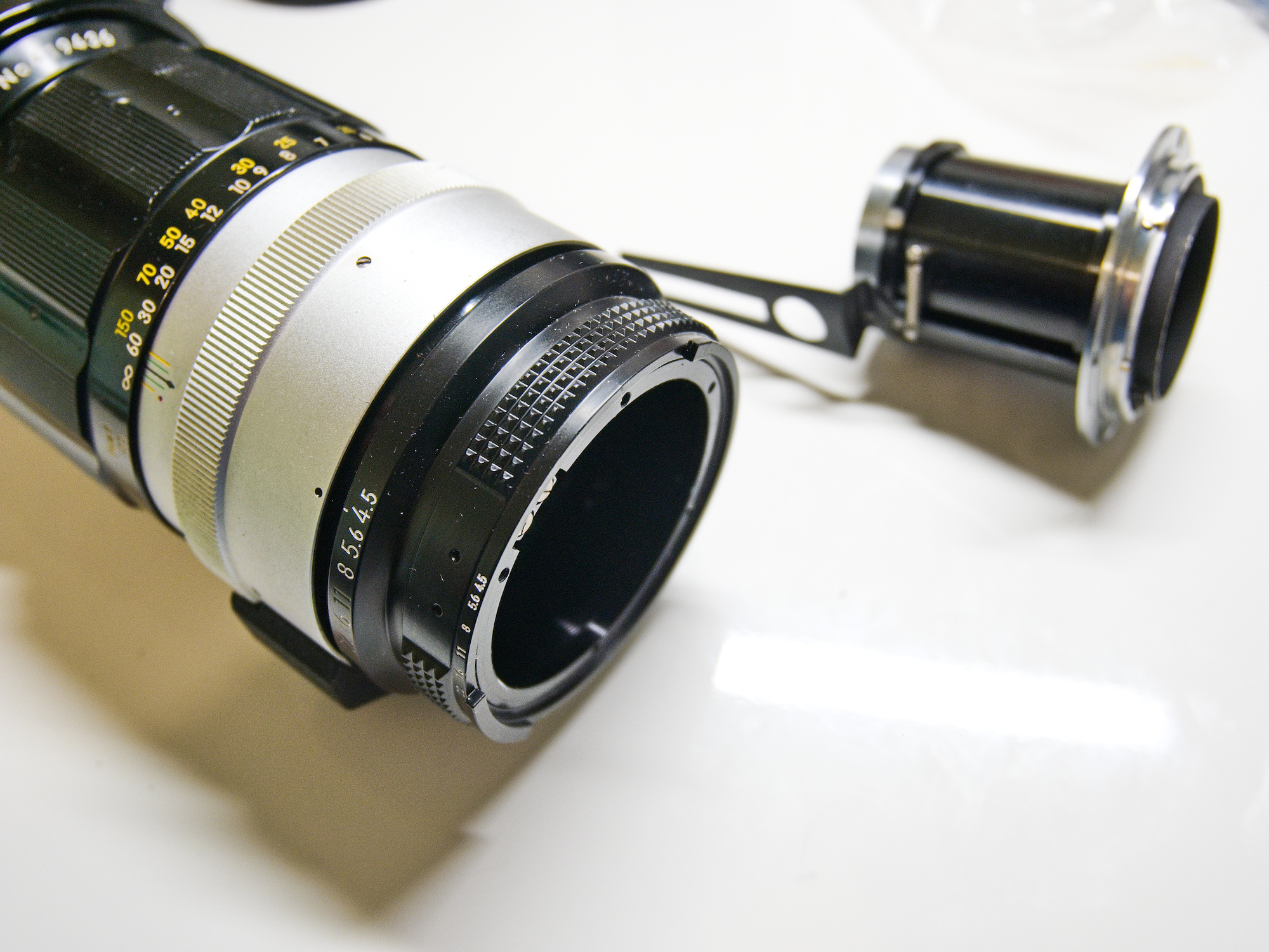

The new AI converted lens mount for the NIKKOR-H 300mm f/4.5:

To use a 50mm macro along with the PB-6 instead of the 18-70mm lens @70mm from Part 1 requires a smaller distance between the camera and the bellows mount.

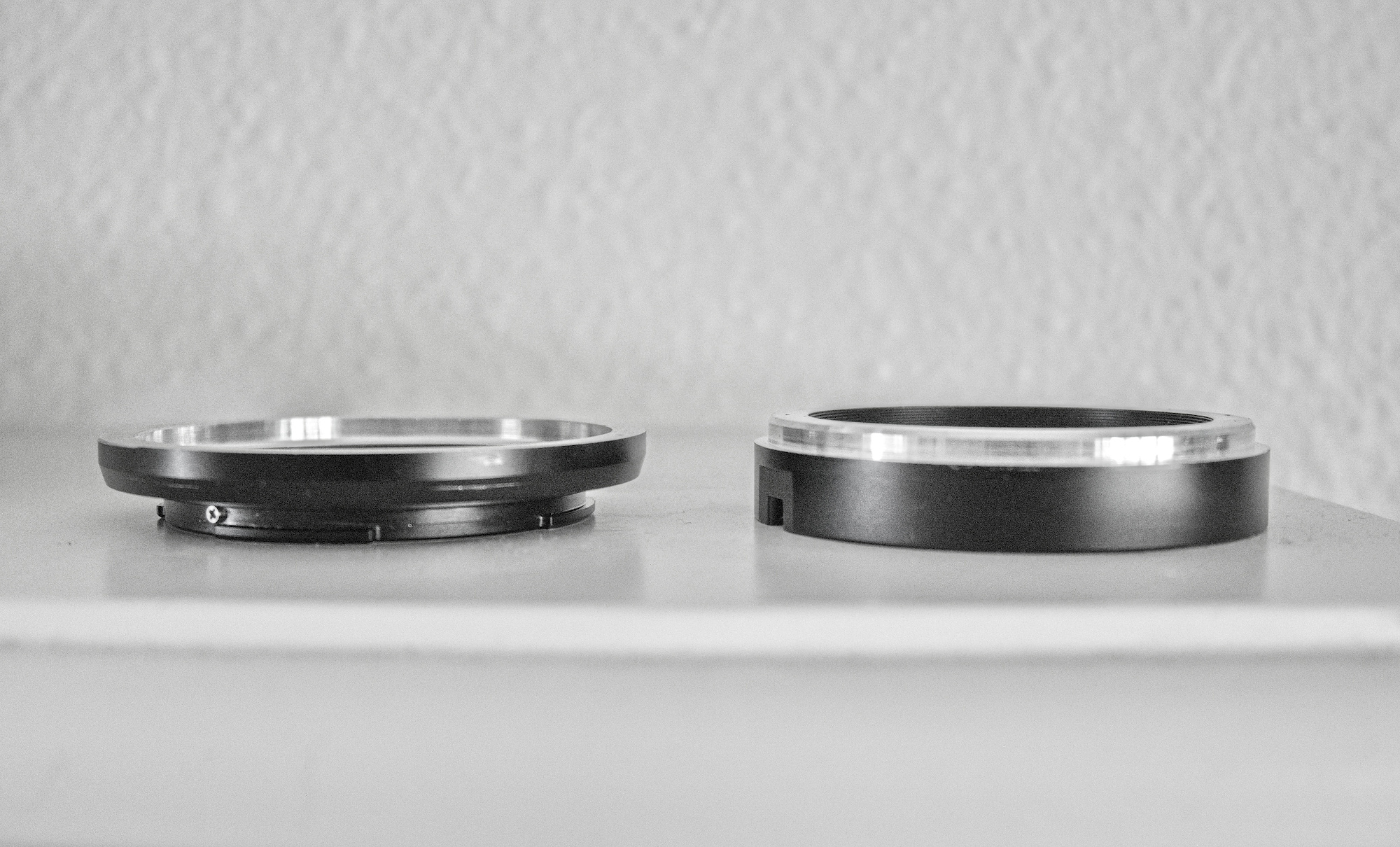

For this, I made an even shorter F to Z mount adapter:

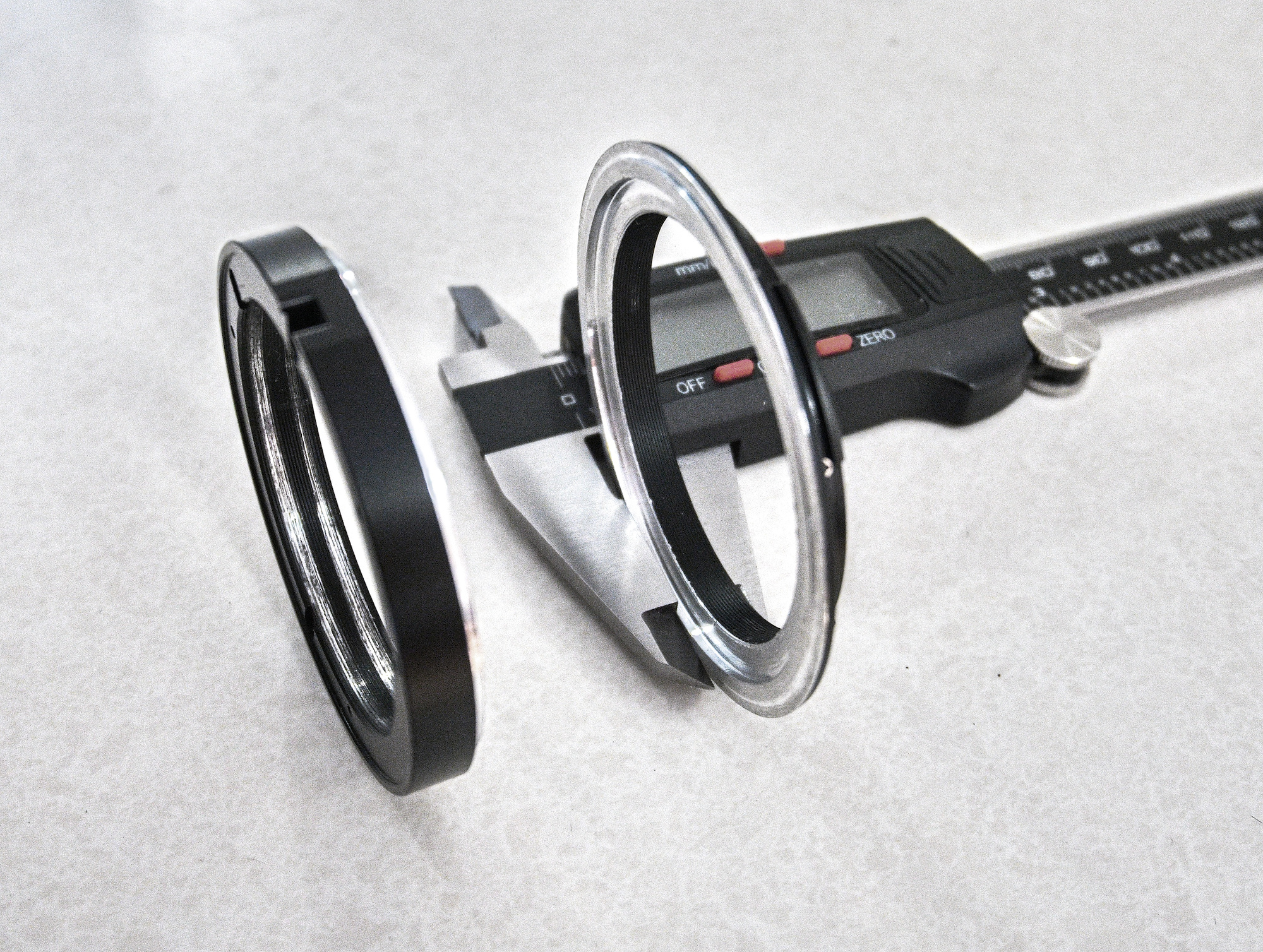

The left side with the F mount is 8.40mm in width, the depth of the recess with 58mm diameter is 1.5mm.
The right with the Z mount is 7mm in width and has the 58mm x 1.5mm indentation to connect to the F mount side.

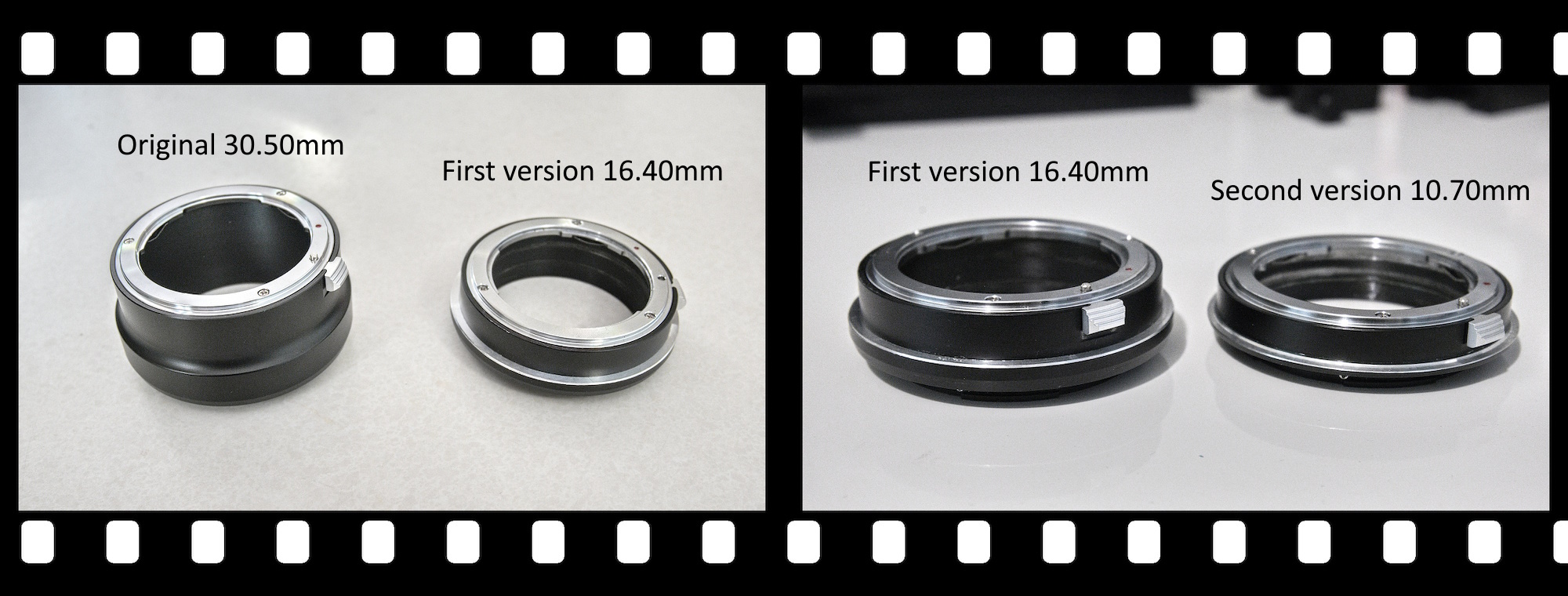

This results in a flange distance of only 10.70mm, compared to the 16.40mm flange distance of the first version of the reduced mounting adapter. The unmodified original flange distance is 30.50mm.

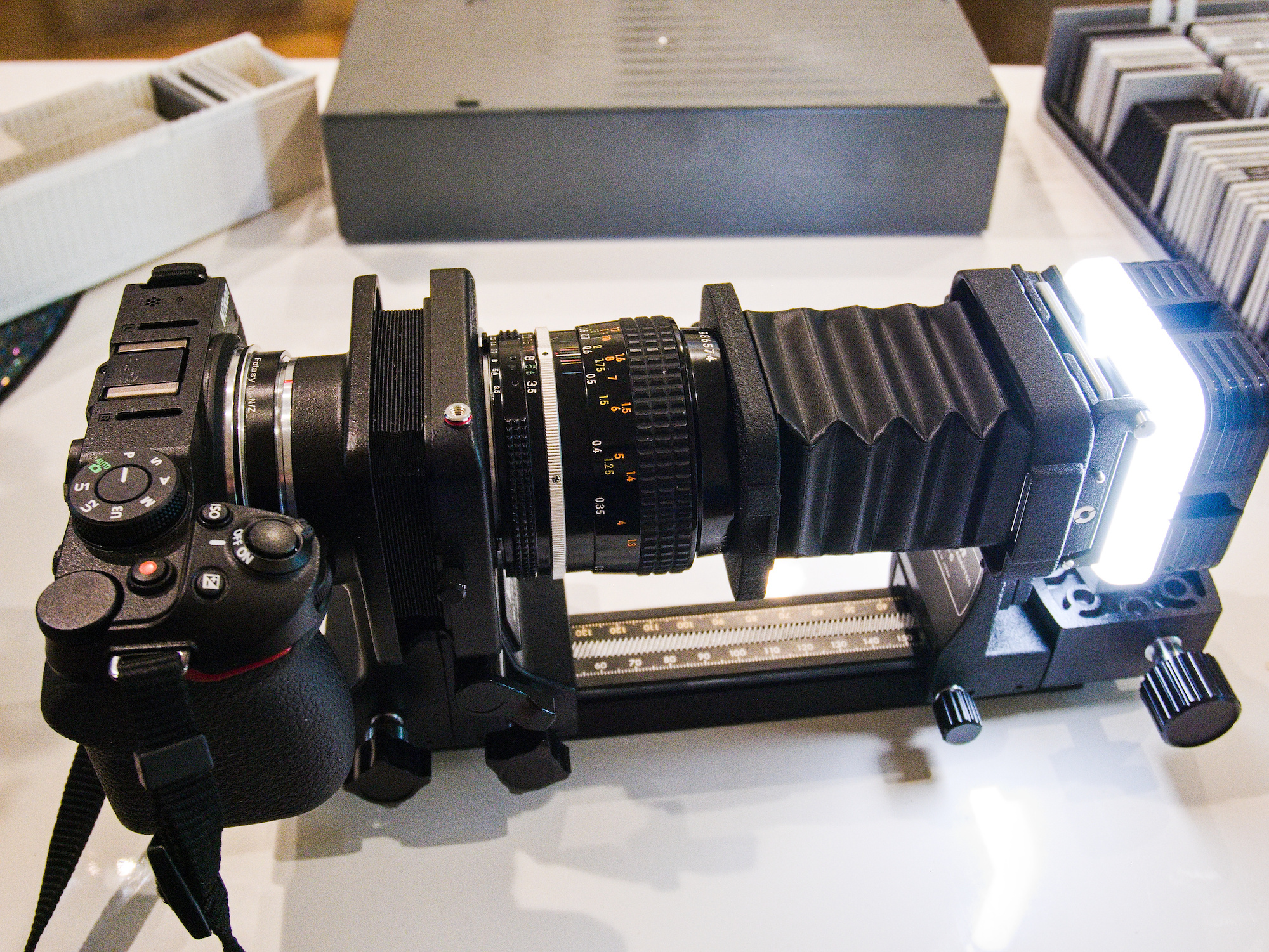

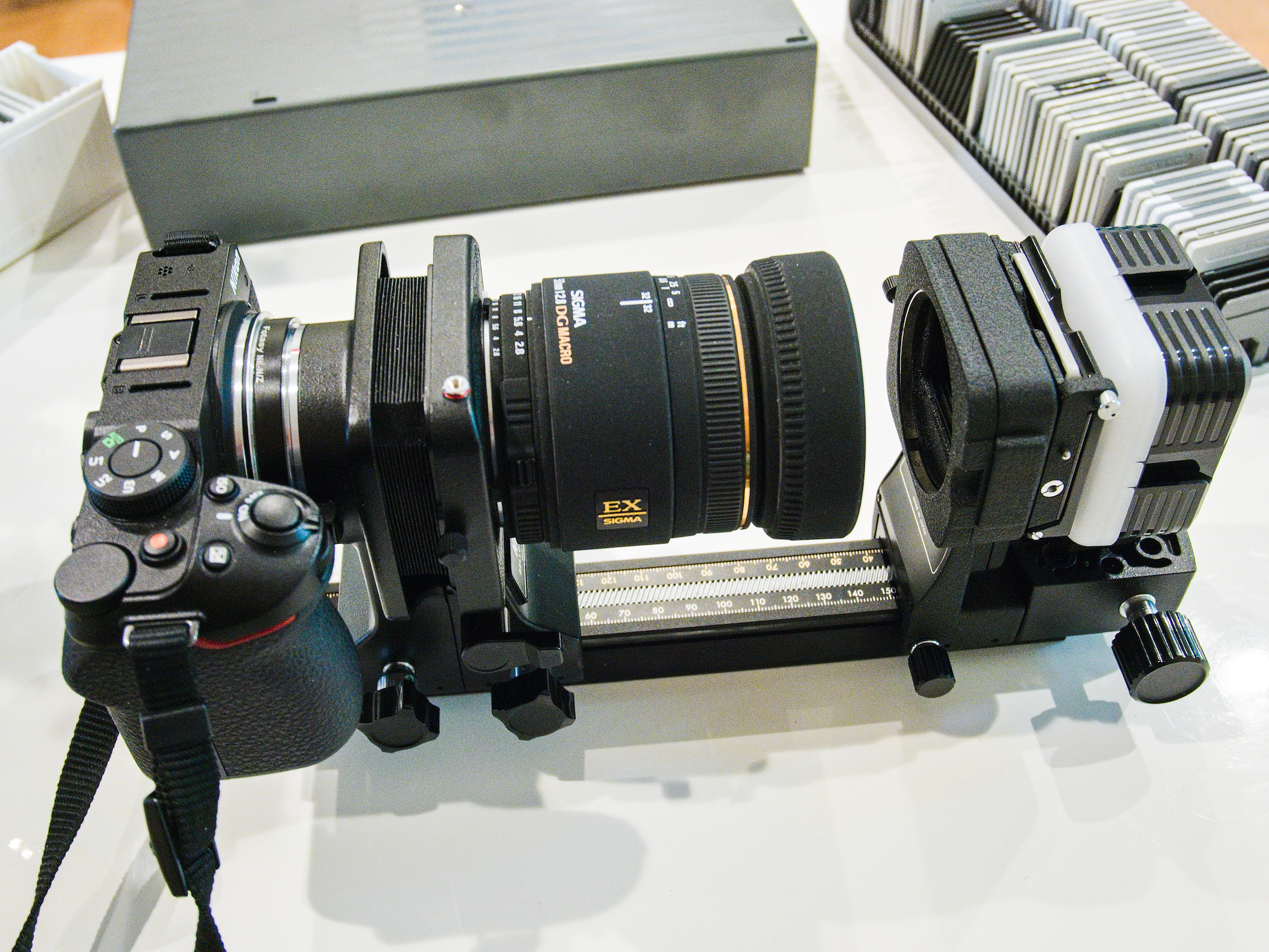

With this shortened flange distance, the Sigma 50mm f/2.8 FX DG Macro works perfectly:

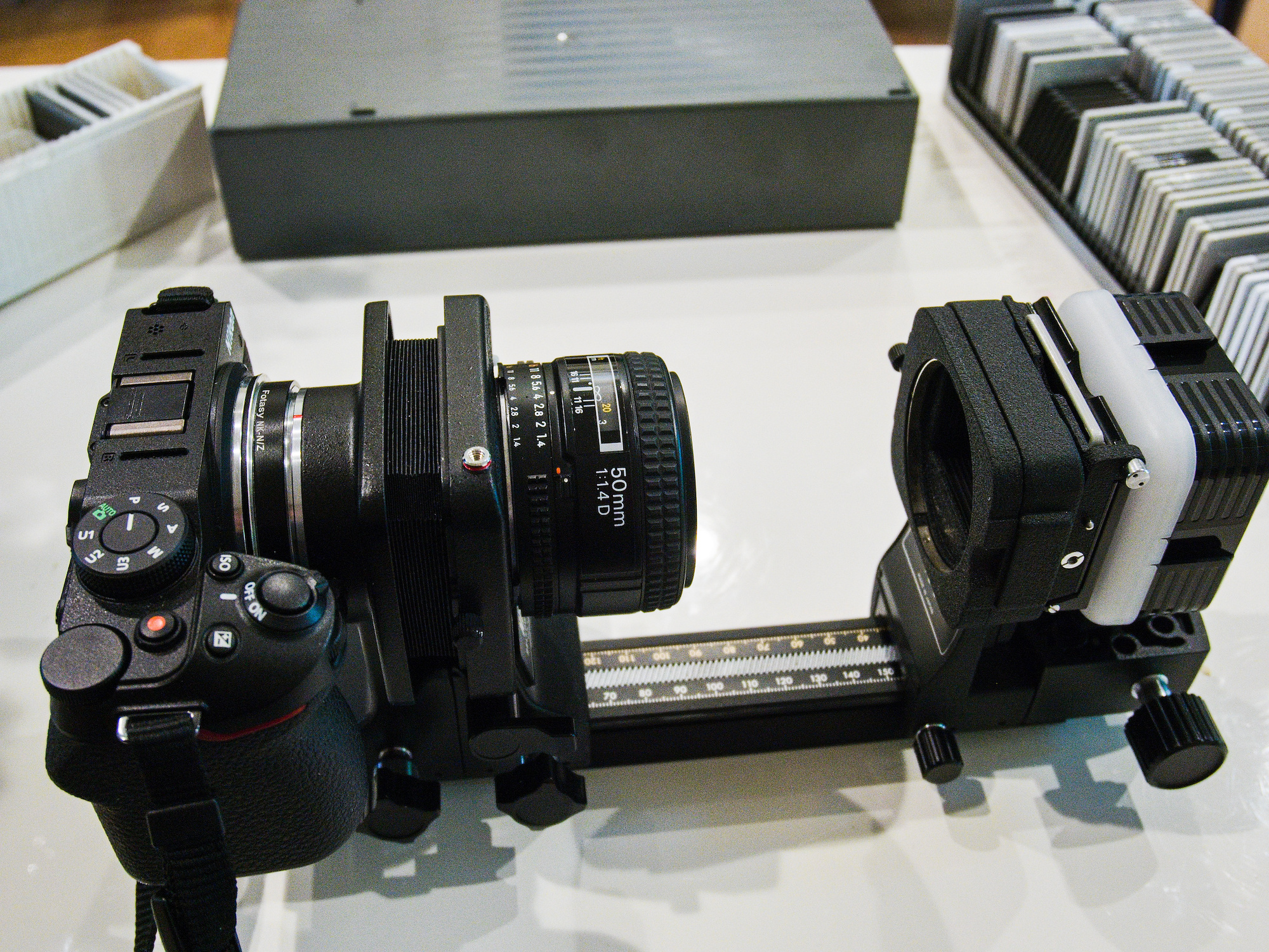

And so does the Nikon 50mm f/1.4, but it is not that sharp in the corners as the macro:

The Micro-Nikkor 55mm f/3.5 is in the same class as the Sigma macro in sharpness:

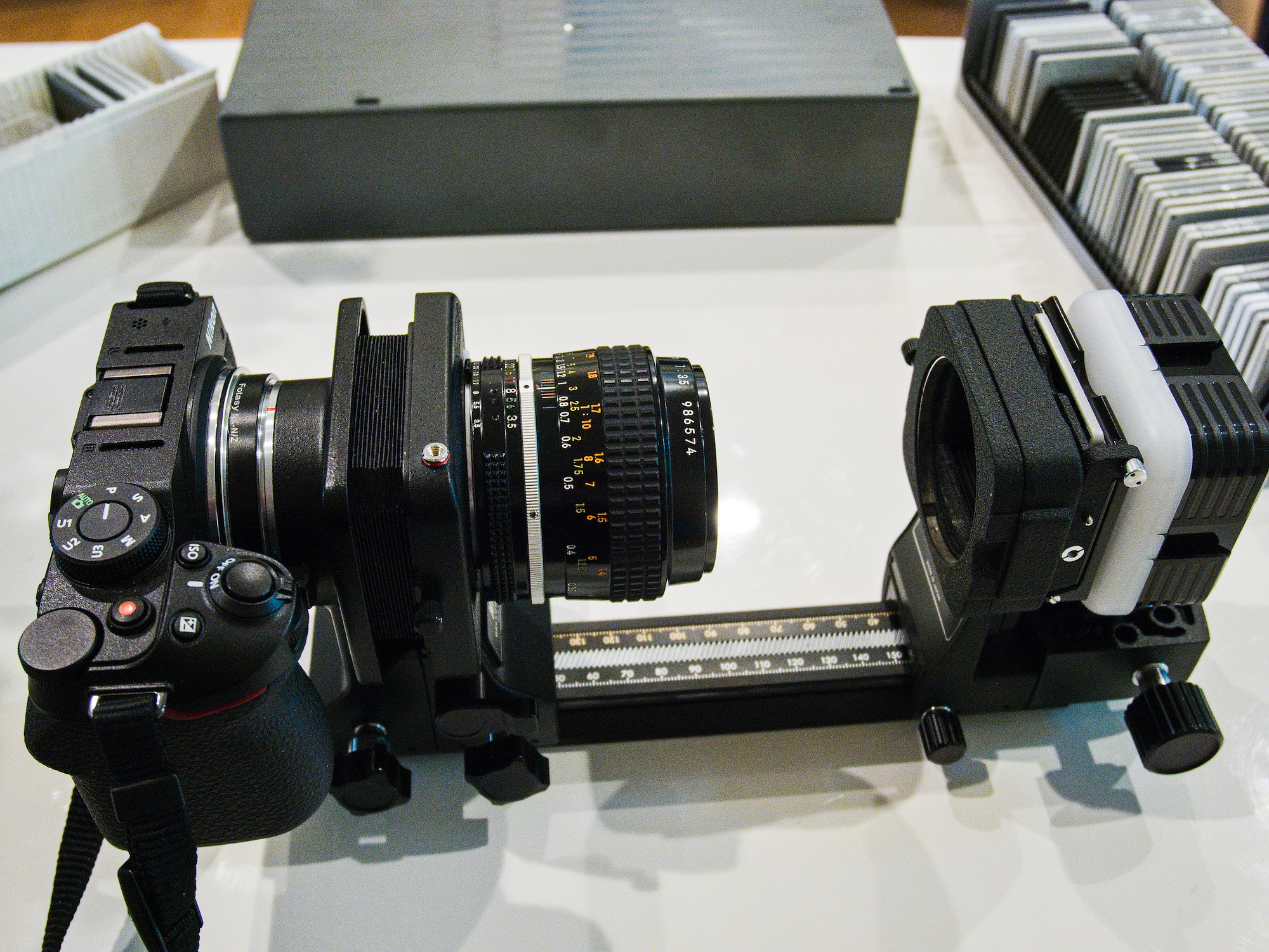

The Slide Copying Adapter bellows can be directly attached to the Micro-Nikkor. The Sigma requires either a 52mm extension tube or a step down ring 55-52mm with a BR-2 and BR-3 adapter:

TL;DR 18-70mm Zoom Lens @70mm with a reduced F to Z adapter covers the full frame of the slide using a DX Z Camera on a Nikon PB-6. Machining required.

With any full frame (analog or digital) Camera and a lens in the normal focal length range it is very easy to use the Nikon Copying Adapter with the PB-6 Bellows.

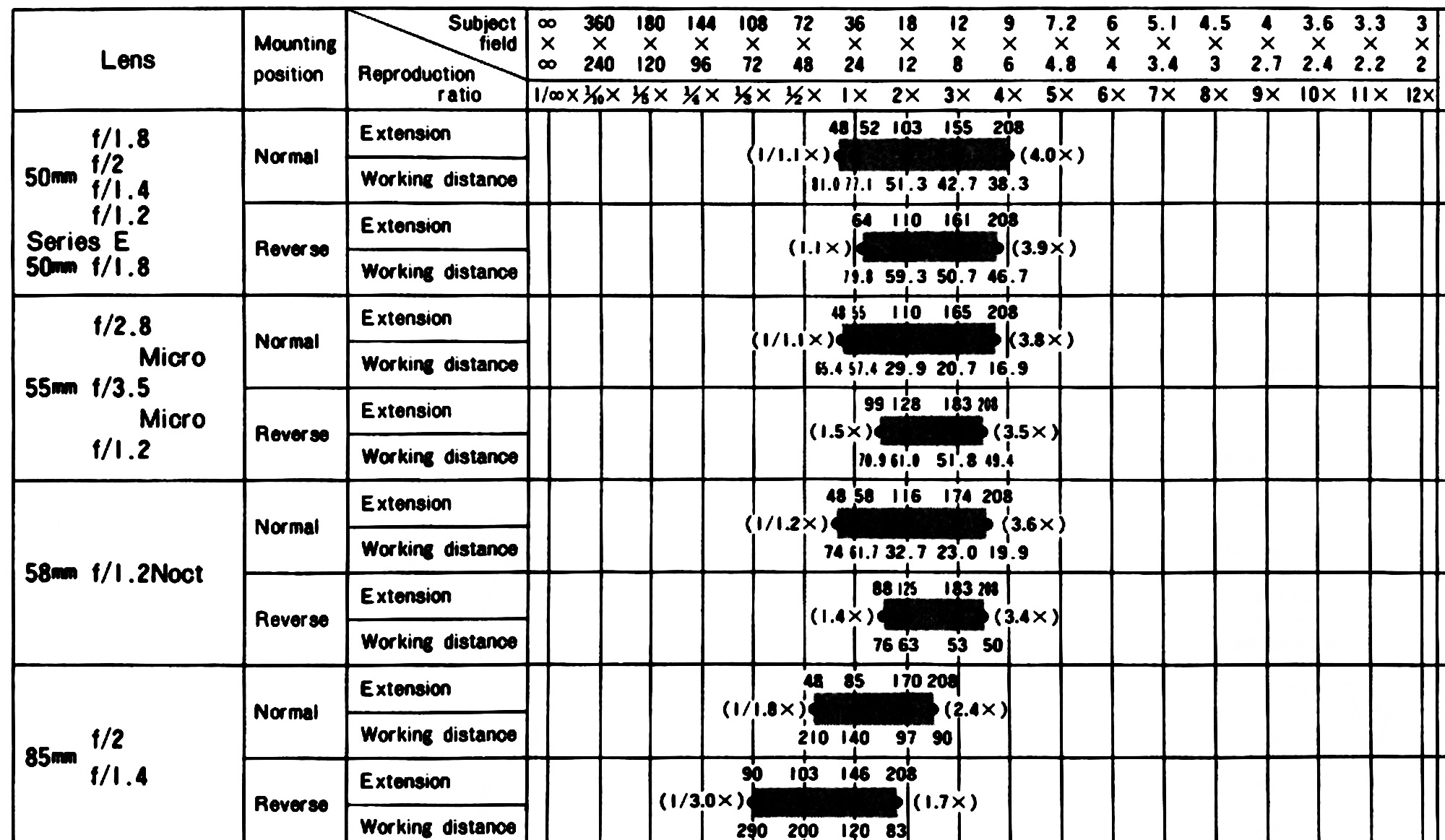

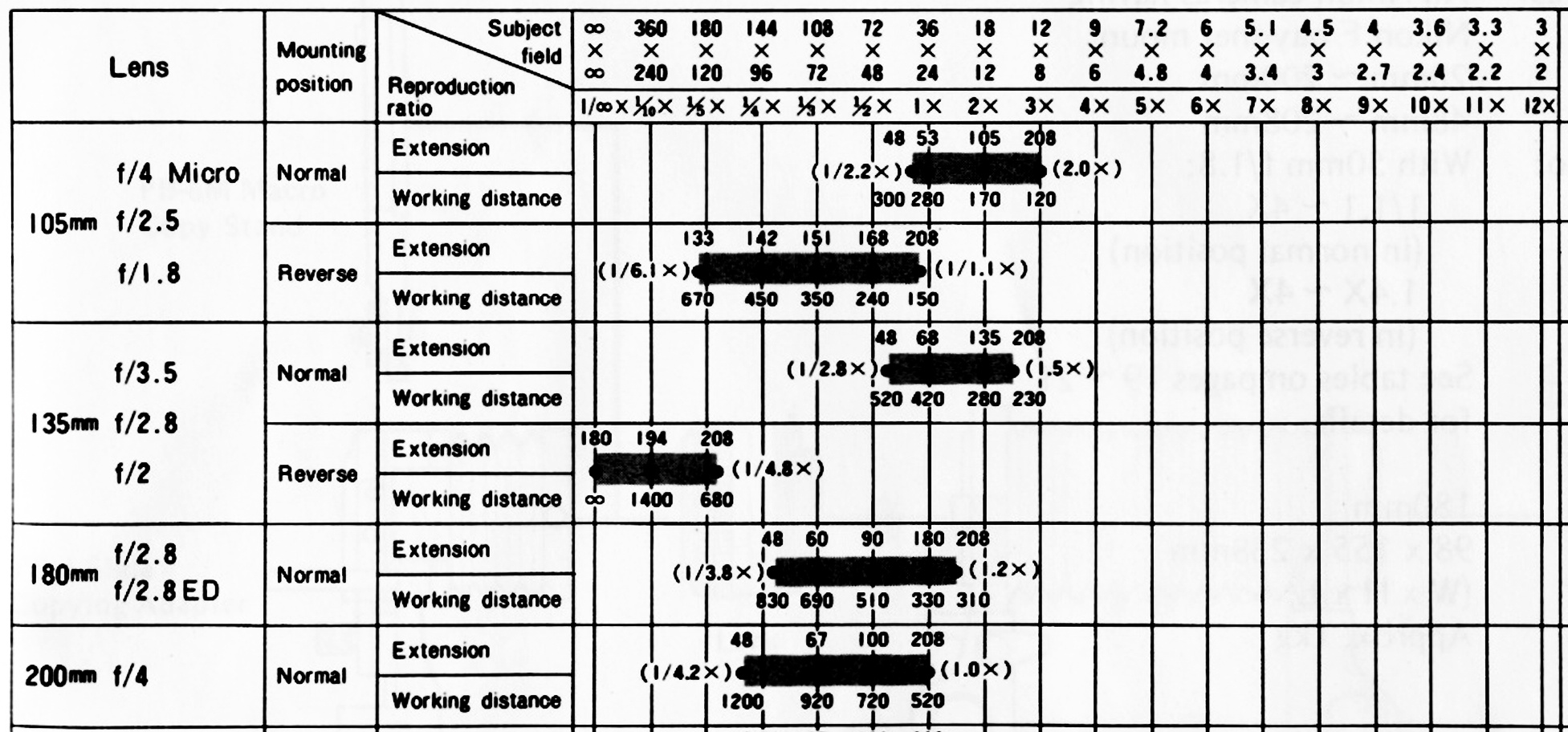

The 50mm, 55mm and 58mm result in the correct working distances that fit within the PB-6 Bellows. The working distance for the 85mm is already too large for the Slide Copying Adapter. See the 36x24 subject field (thats the size of the slide) and the working distances in mm, printed below the grey range bar in the repro ratios overview:

But with a DX camera the field of view is smaller and the slide is cropped. The lenses are already at the left end side for the 36x24 subject field. And moving towards a larger subject field 54x36 to account for the 1.5x cropping is not possible.
The Slide Copying Adapter cannot be positioned closer to the camera using a lens with a shorter focal length because the lens itself is in the way, and using a lens with a larger focal length would position the Slide Copying Adapter too far away outside of the working distance for the bellows. For example, the 85mm lens supports the required subject field, but sets the Slide Copying Adapter about 50mm outside of the bellows rail.

The Nikon 105mm f/2.8 Macro AF D lens in reverse with the BR-2 adapter, as someone in the DPReview forum posted, also moves the Slide Copying Adapter outside of the PB-6 bellows rail.
The PB-4 Slide Copying Adapter used there, works as an extension, and is not part of the bellows rail as with the PB-6.
Even with a modified adapter as described in this post, the Slide Copying Adapter will still be outside of the PB-6 rail.

To use the PB-6 without any extension, the only possible solution without modifiying the bellows is to shorten the distance from the mount to the camera. This changes the ratio and the working distance. Since a Z mount camera is used, the adapter can be reduced to allow the full frame coverage.

As alternative solution, the camera can be mounted via the tripod mount and use a macro lens directly without using the bellows lens mounting.
Or the bellows adapter is modified to allow mounting the camera/lens directly.

In this article, I will describe the solution with a modified adapter to reduce the distance from camera to the lens. See Part 2 with an even more reduced adapter to fit standard 50mm macro lenses.

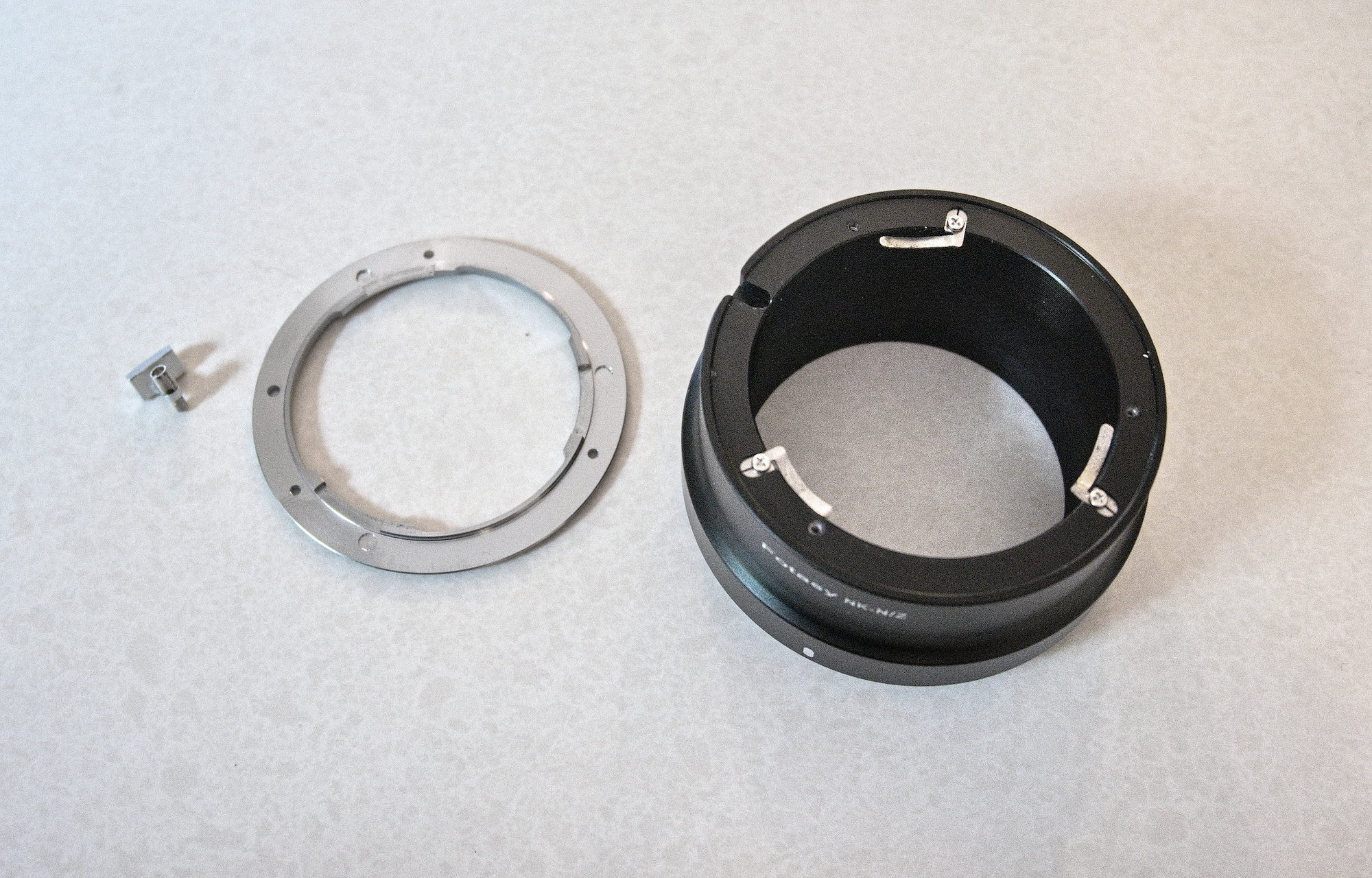

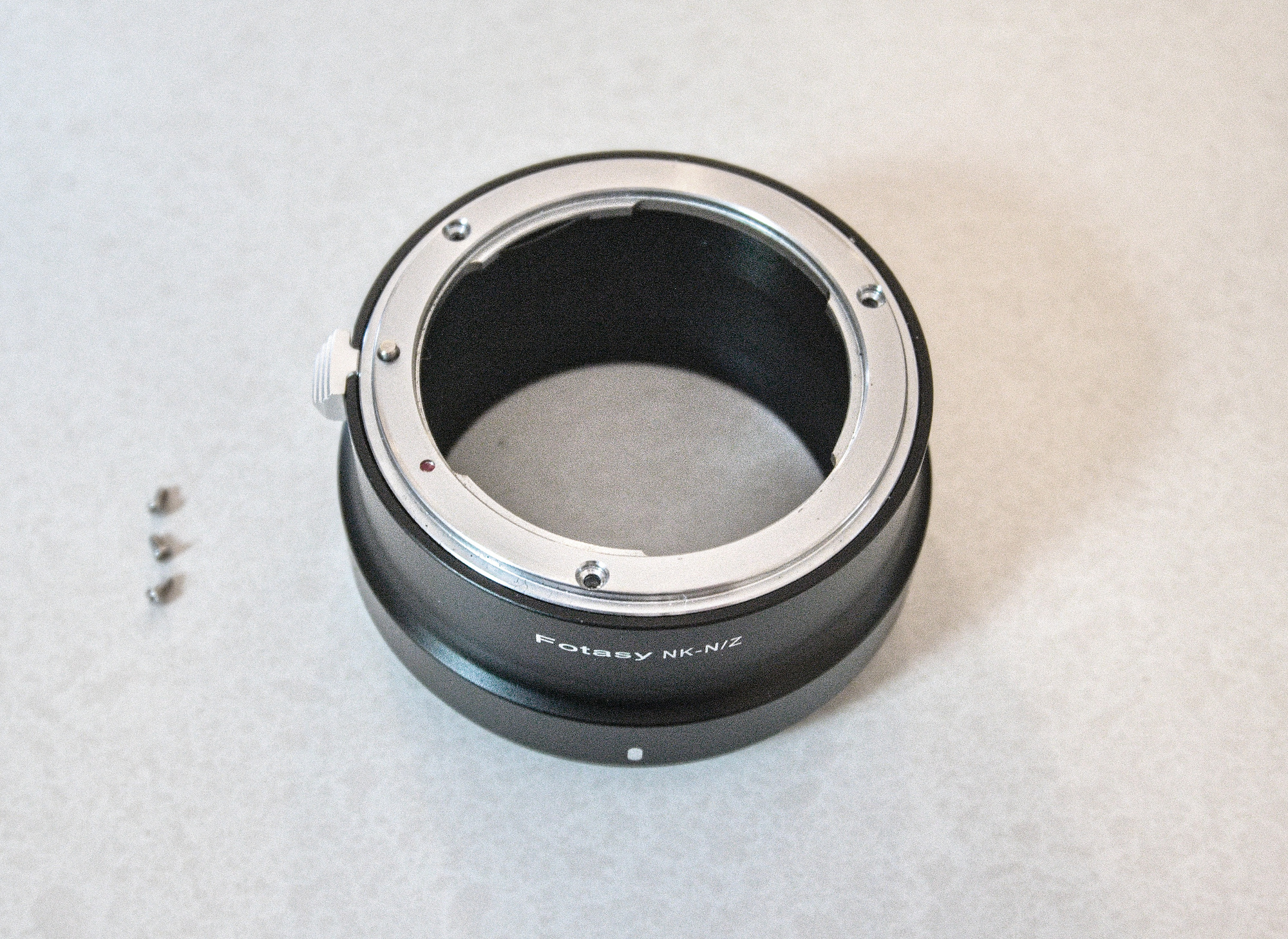

To get started, the F mount is removed for the machining:

And also the three spring blades:

Split the adapter in half.
This is soft aluminium, the rake angle of the tool bit is 30-35° instead of the 8° for steel and the 0° for brass in case you were wondering:

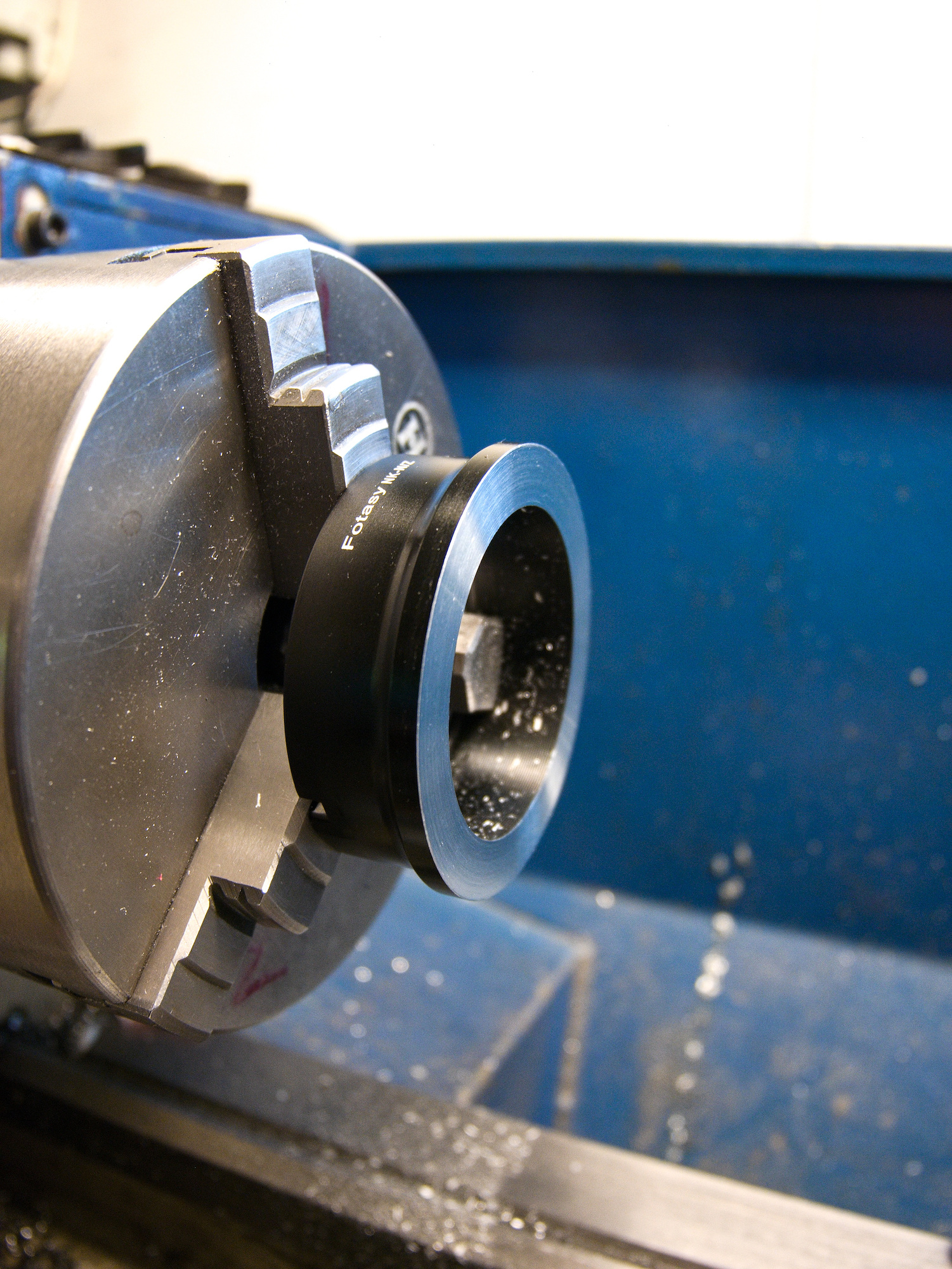

Reduce the length of the F mount side that gets connected to the shortened Z mount site:

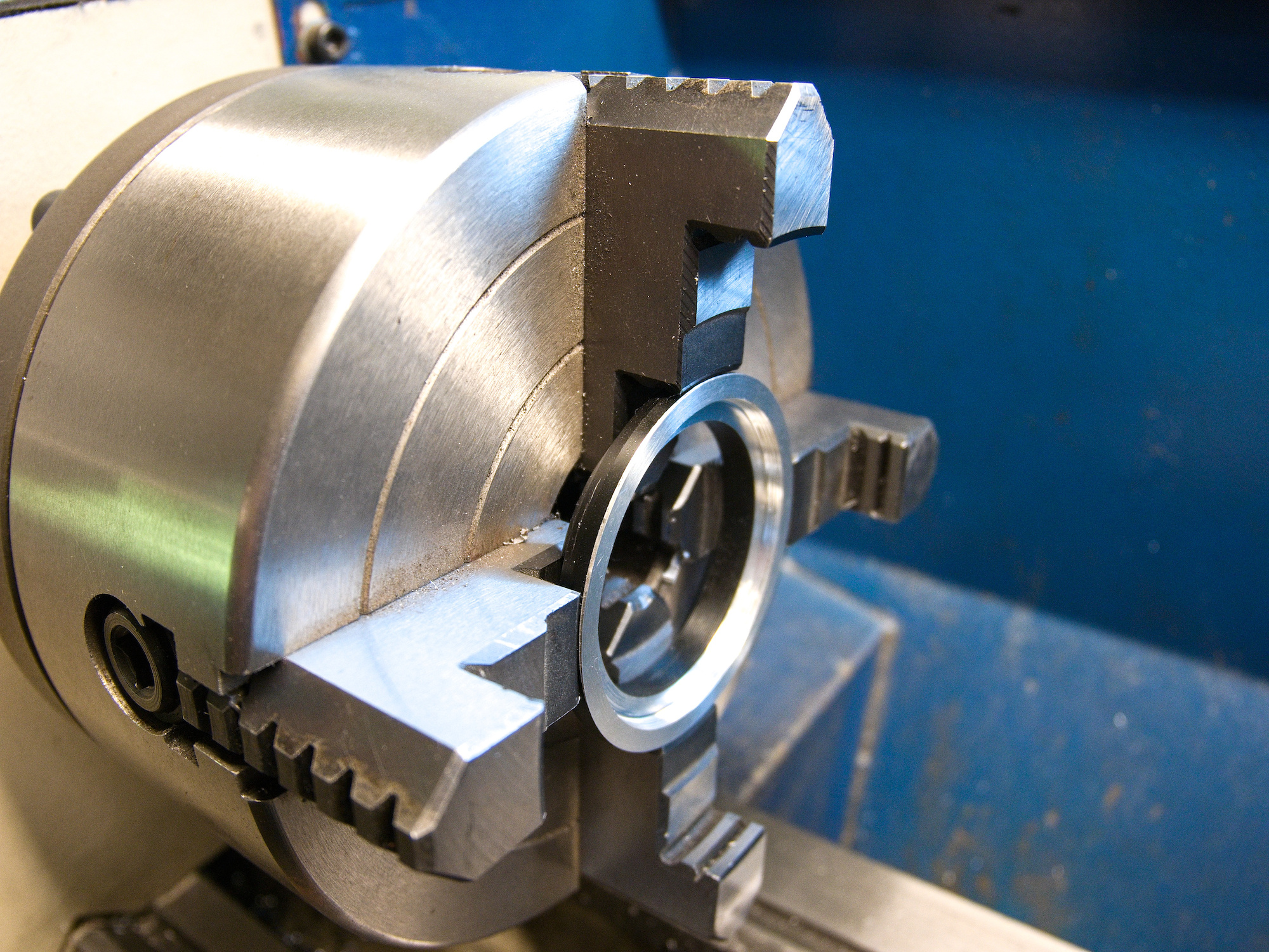

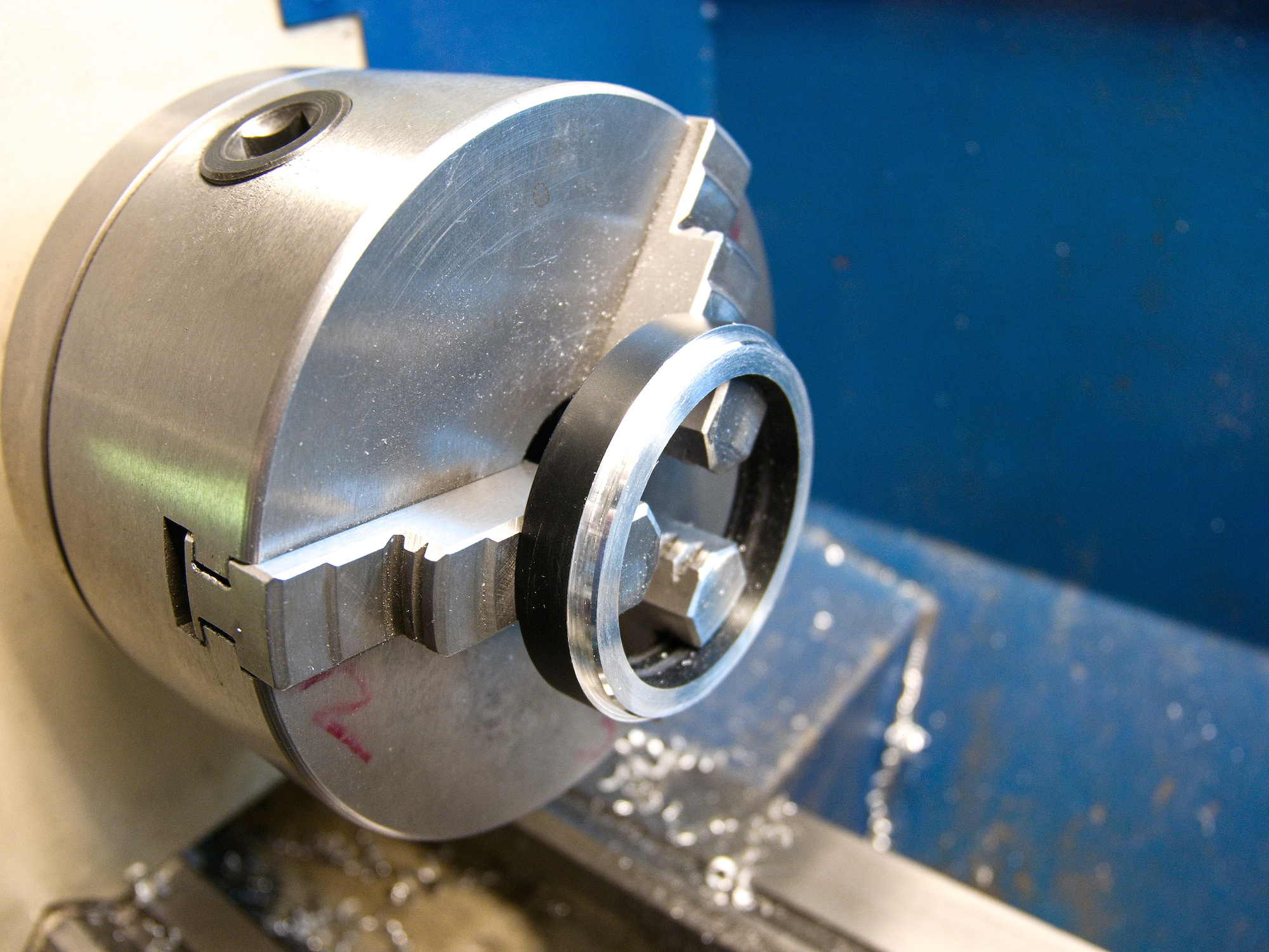

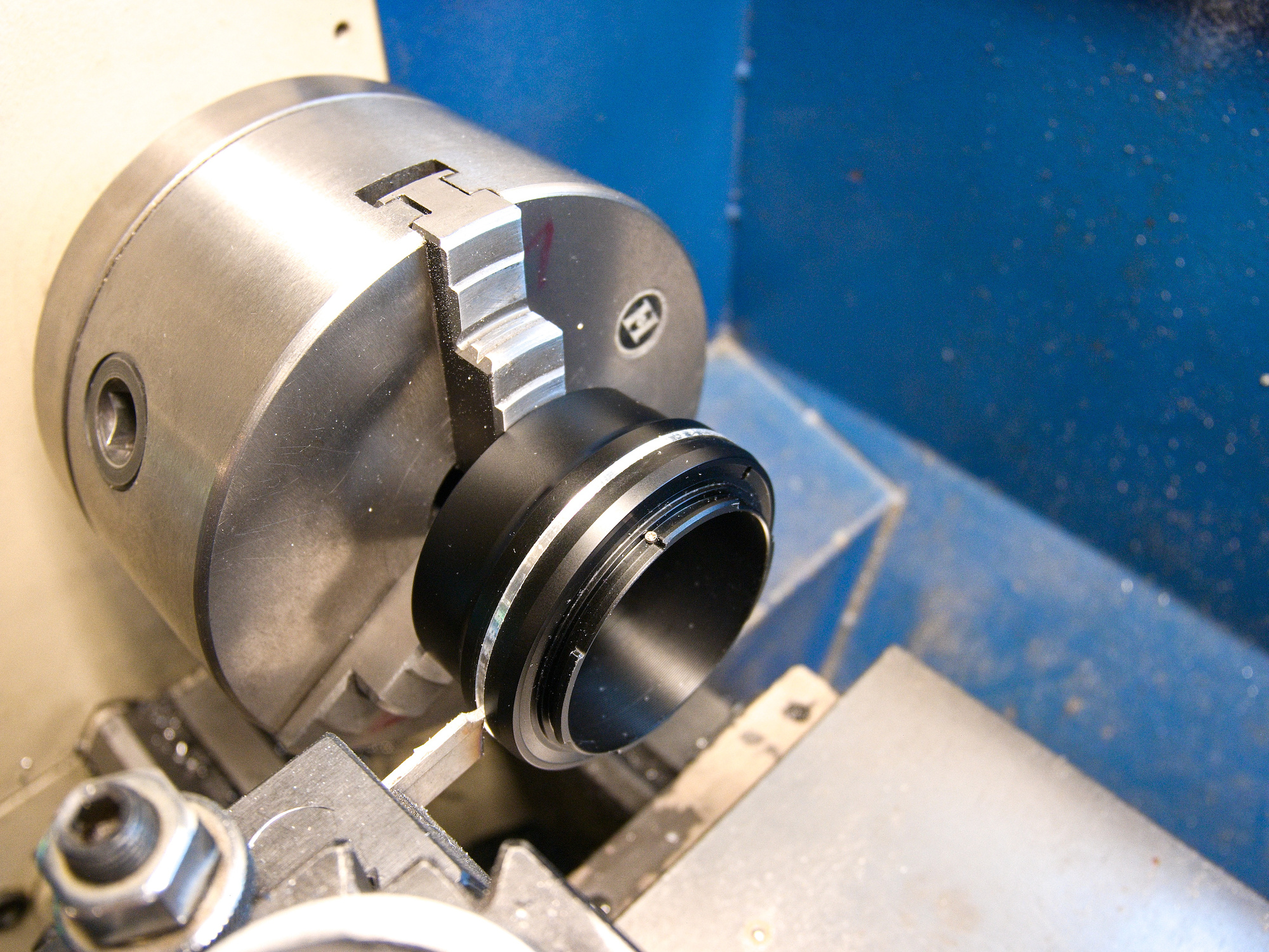

Machine the Z mount side to fit the reduced F mount half. The larger 4-jaw chuck is used to properly hold the mount as the 3-jaw chuck is not deep enough:

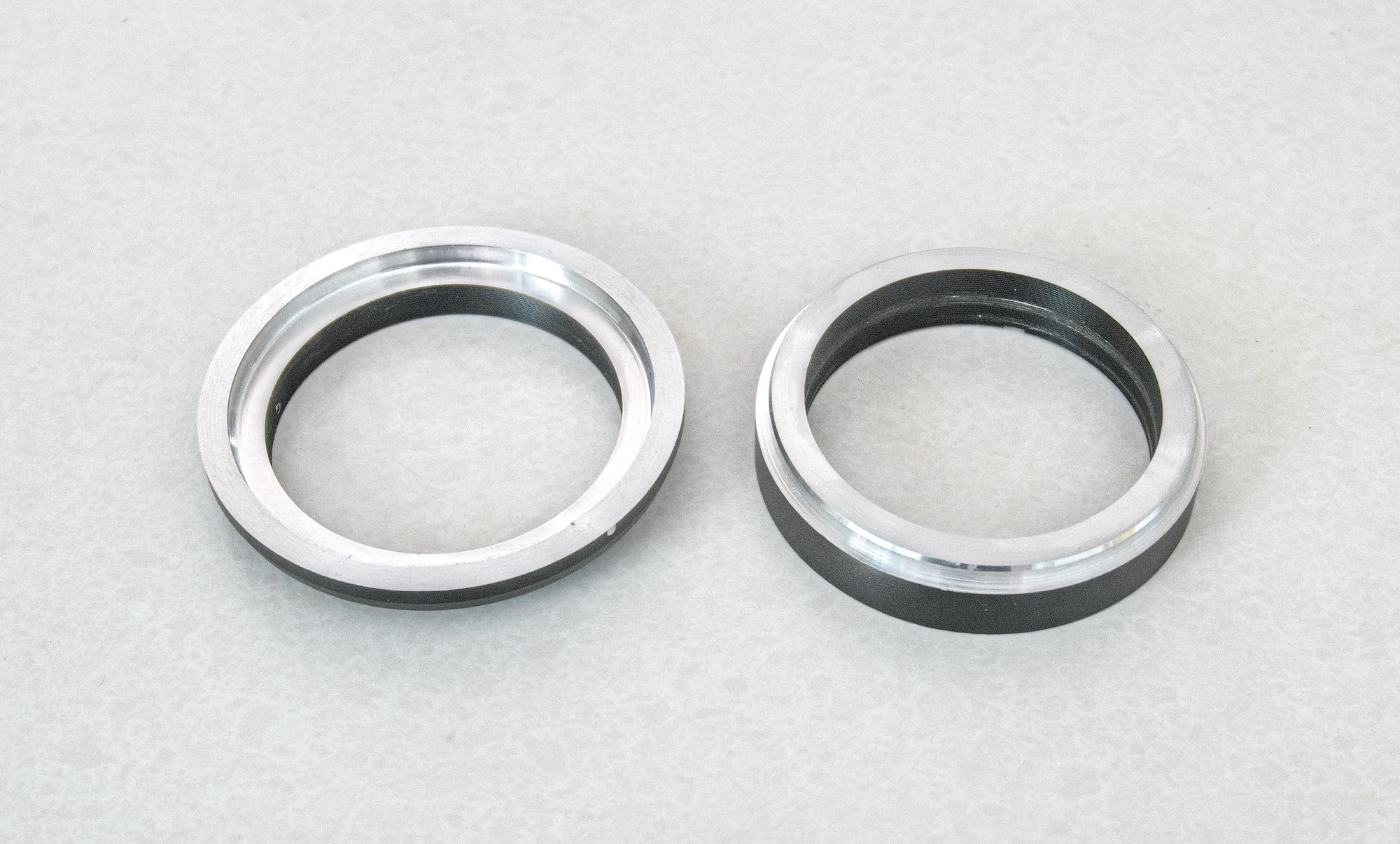

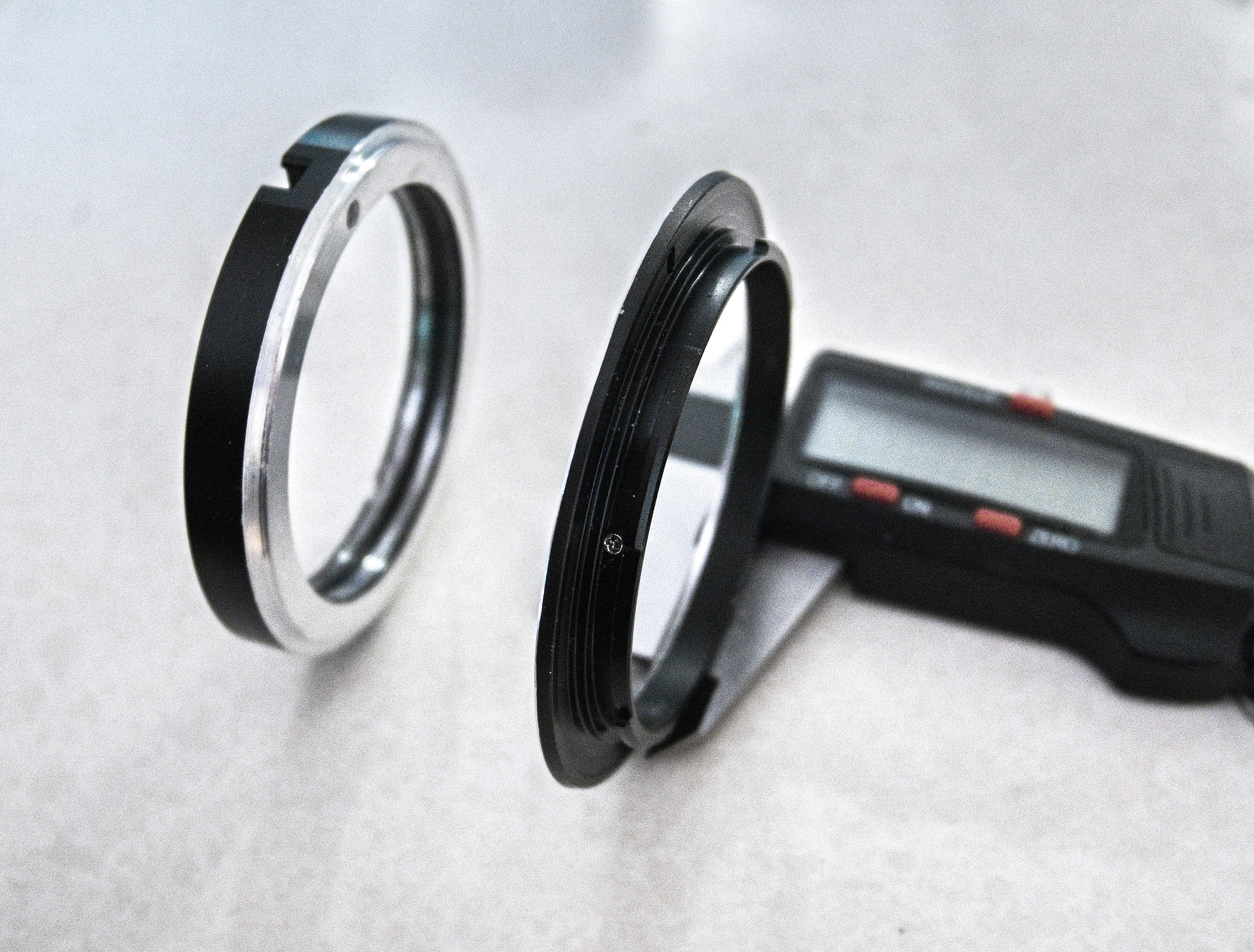

Both halfs are ready and will be pressed and glued together using Loctite 638:

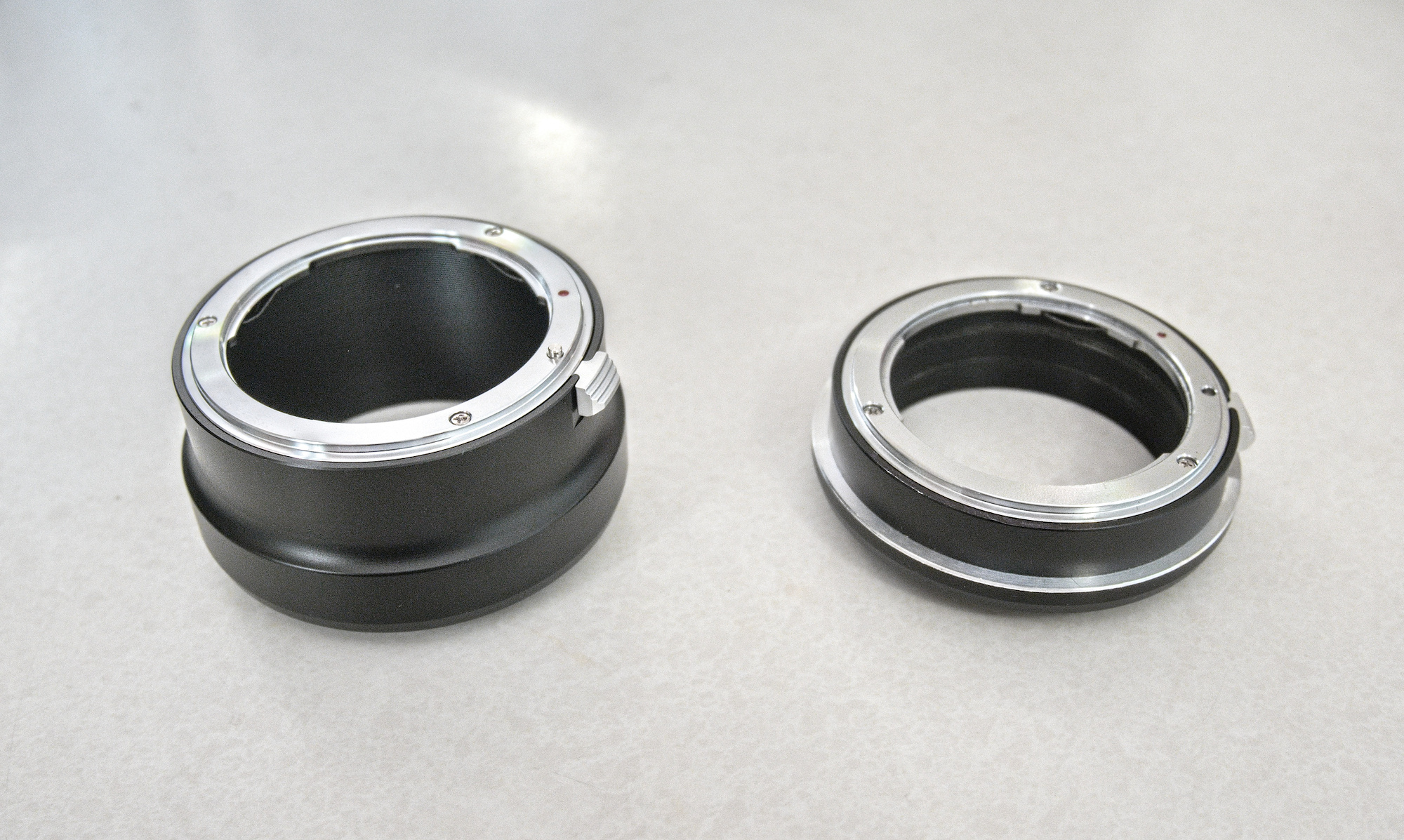

The adapter flange distance is reduced from 30.50mm (Nikon F flange distance is 46.5mm, Nikon Z flange distance is 16mm) to 16.40mm:

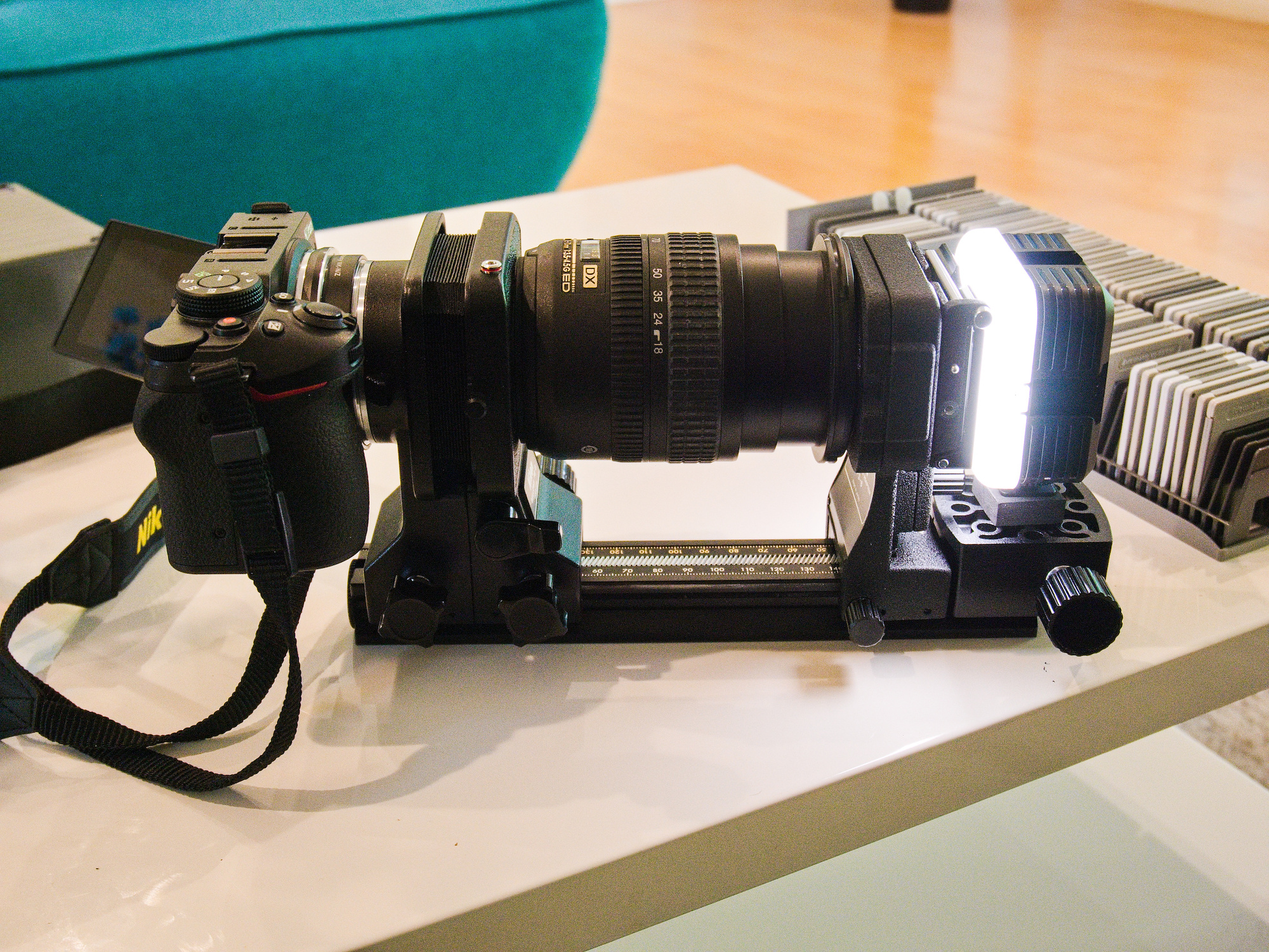

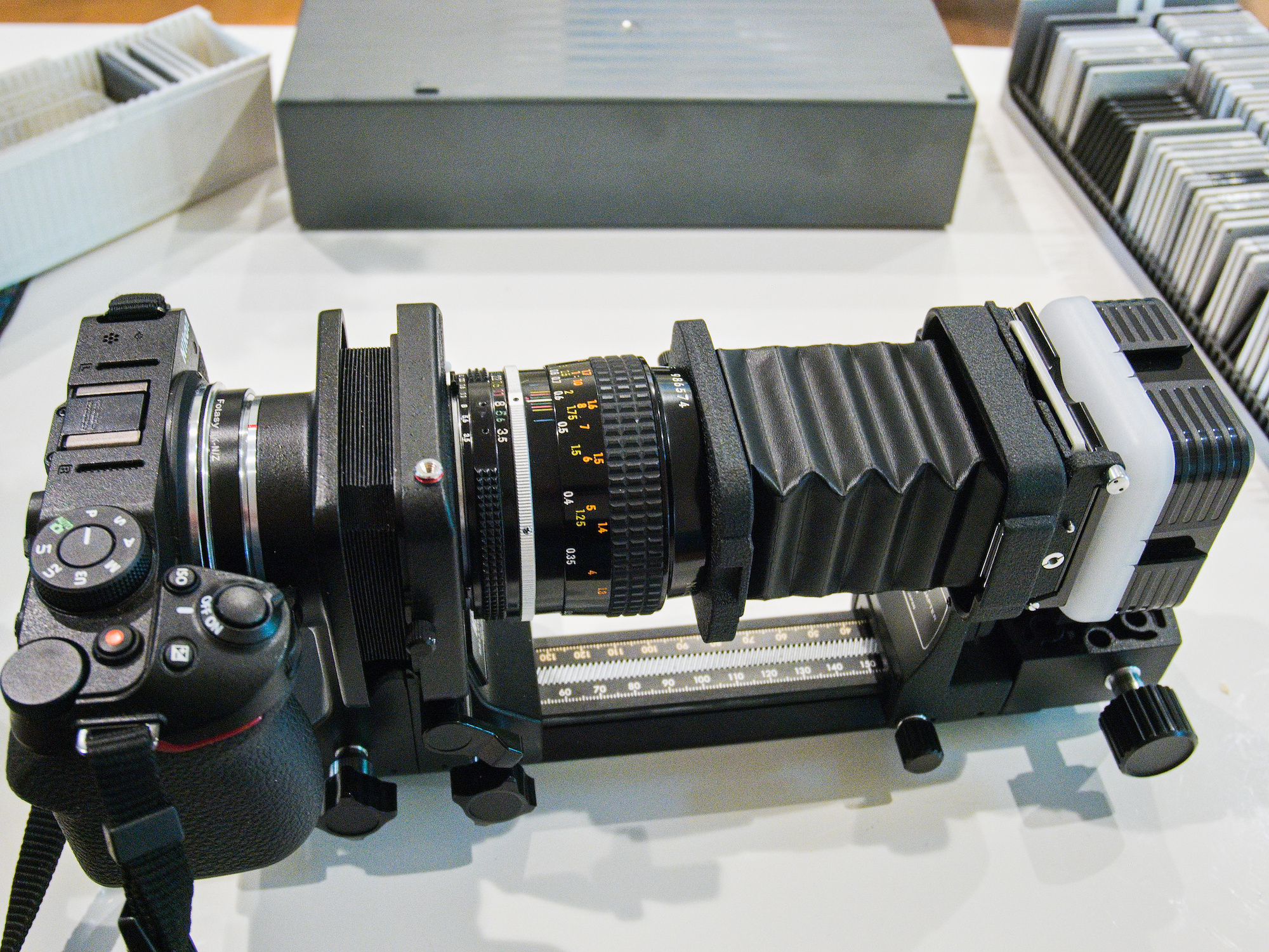

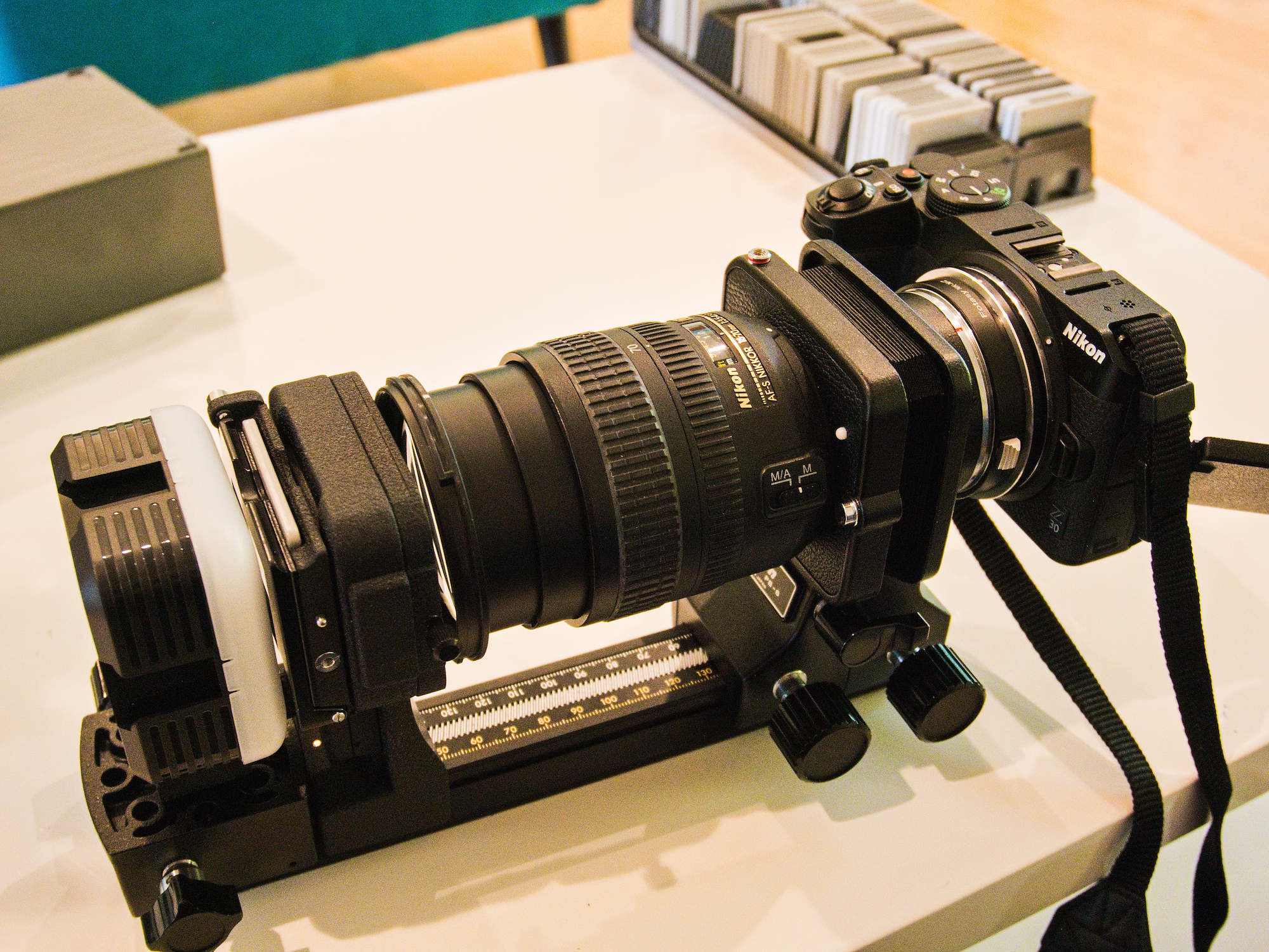

After a trial and error check with all my lenses, the 18-70mm Zoom Lens at 70mm focal length covered the full frame of the slide and fit perfectly. The reduced size of the F to Z mount adapter was just right for this focal length.
Aperture is set by a AR-3 cable release (not in the picture) or by holding the preview levers with a fixture.

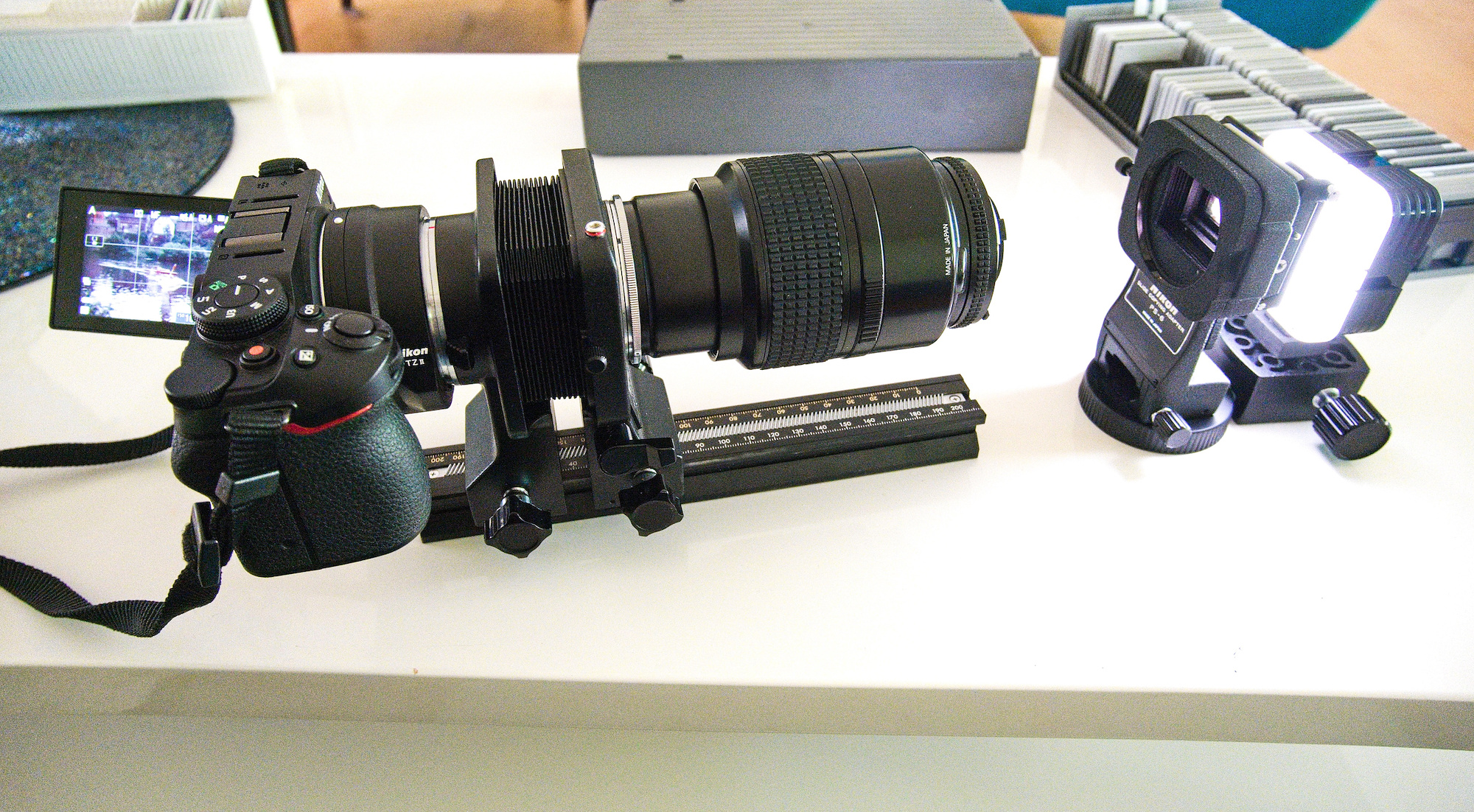

The slide is lit by a LED Video Light with a CRI 97+:

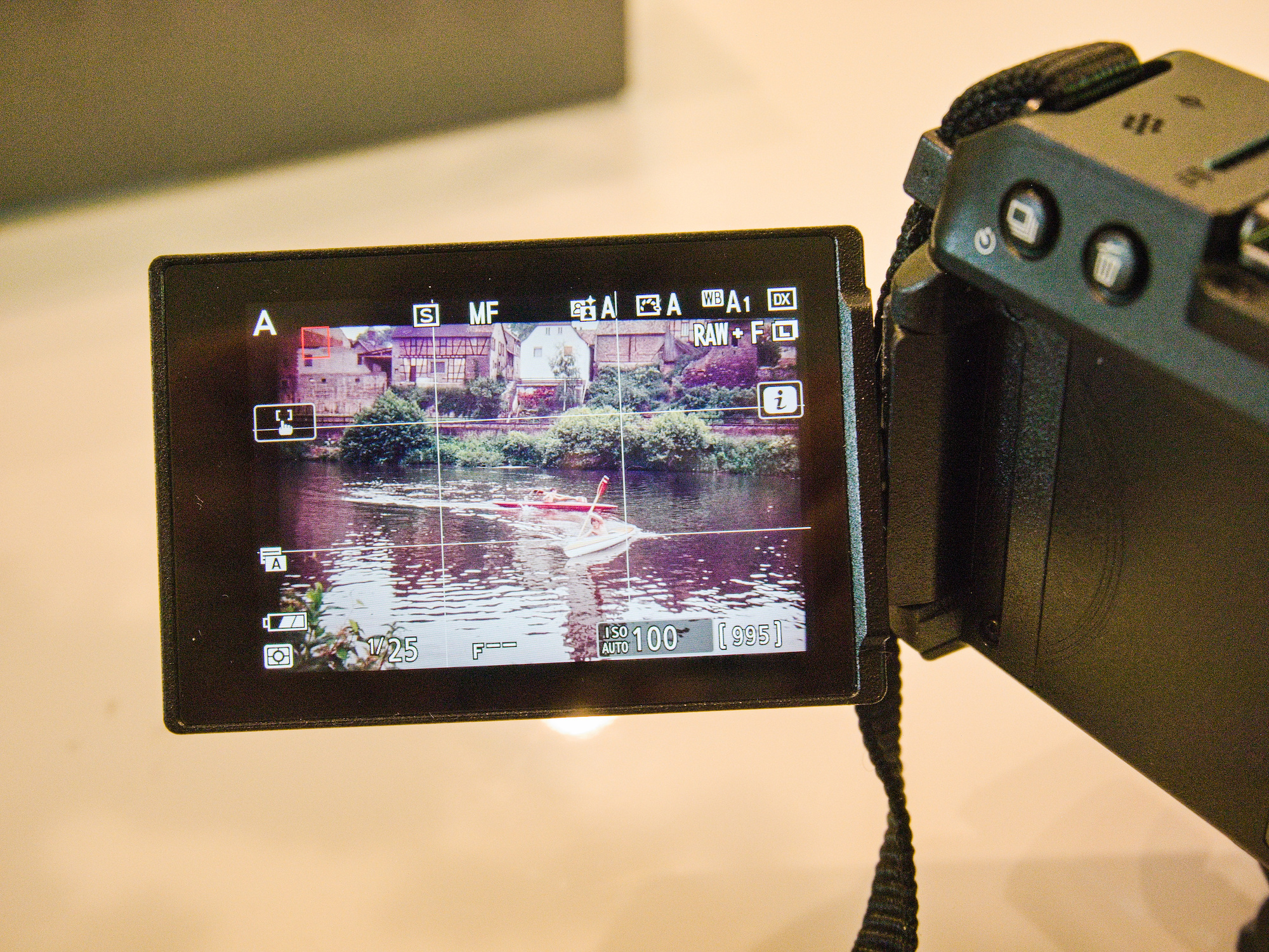

The full frame of the slide with a tiny border is visible in the preview:

The slide is captured as a NEF and ready for post processing:

A tilt lens change the focal plane, and this is impossible to do with transforms in Software¹. Hardware required.
To get a Tilt lens for Nikon Z leaves you only to a few choices.

Use Nikon F mount Tilt(-Shift) lenses with the FTZ adapter:

• Nikon PC NIKKOR 19mm f/4E ED Tilt-Shift Lens $3,396
• Nikon PC-E NIKKOR 24mm f/3.5D ED Tilt-Shift Lens $2,196
• Nikon PC-E Micro-NIKKOR 45mm f/2.8D ED Tilt-Shift Lens $2,046
• Nikon PC-E Micro-NIKKOR 85mm f/2.8D Tilt-Shift Lens $1,976
• Samyang 24mm f/3.5 ED AS UMC Tilt-Shift Lens $669

Nikon hasn't released any Tilt(-Shift) lenses for Z yet, so this leaves you currently only to:

• TTArtisan Tilt 50mm f/1.4 Lens $199
• TTArtisan 100mm f/2.8 Tilt-Shift Macro Lens $389

The 50mm is not the best quality with its standard double gauss design, and who needs a 100mm Tilt lens?

The idea is to use a Tilt adapter F to Z mount, and use your favorite F mount lens (image circle of a Tilt-Shift lens is larger, but here it is used along with a DX sensor, so this will be an advantage; cannot check for FX).
The popular NYC store does not have such an adapter, but the Kipon company store has one: Tilt Adapter for Nikon F Mount Lens on Nikon Z Mirrorless Camera.
The site lists items to be shipped within 1 business day, but as I have learned from the customer service, the item is shipped from somewhere in China first to another warehouse, and then from there to the customer. This translates to a 2-3 week shipping.

The alternative is to use a Sony E to Z mount tilt adapter, or a Fujifilm X to Z mount tilt adapter with an additional lens adapter as the 16mm flange distance of the Z mount is a bit shorter than the Sony (18mm) or Fujifilm (17.7mm) one².

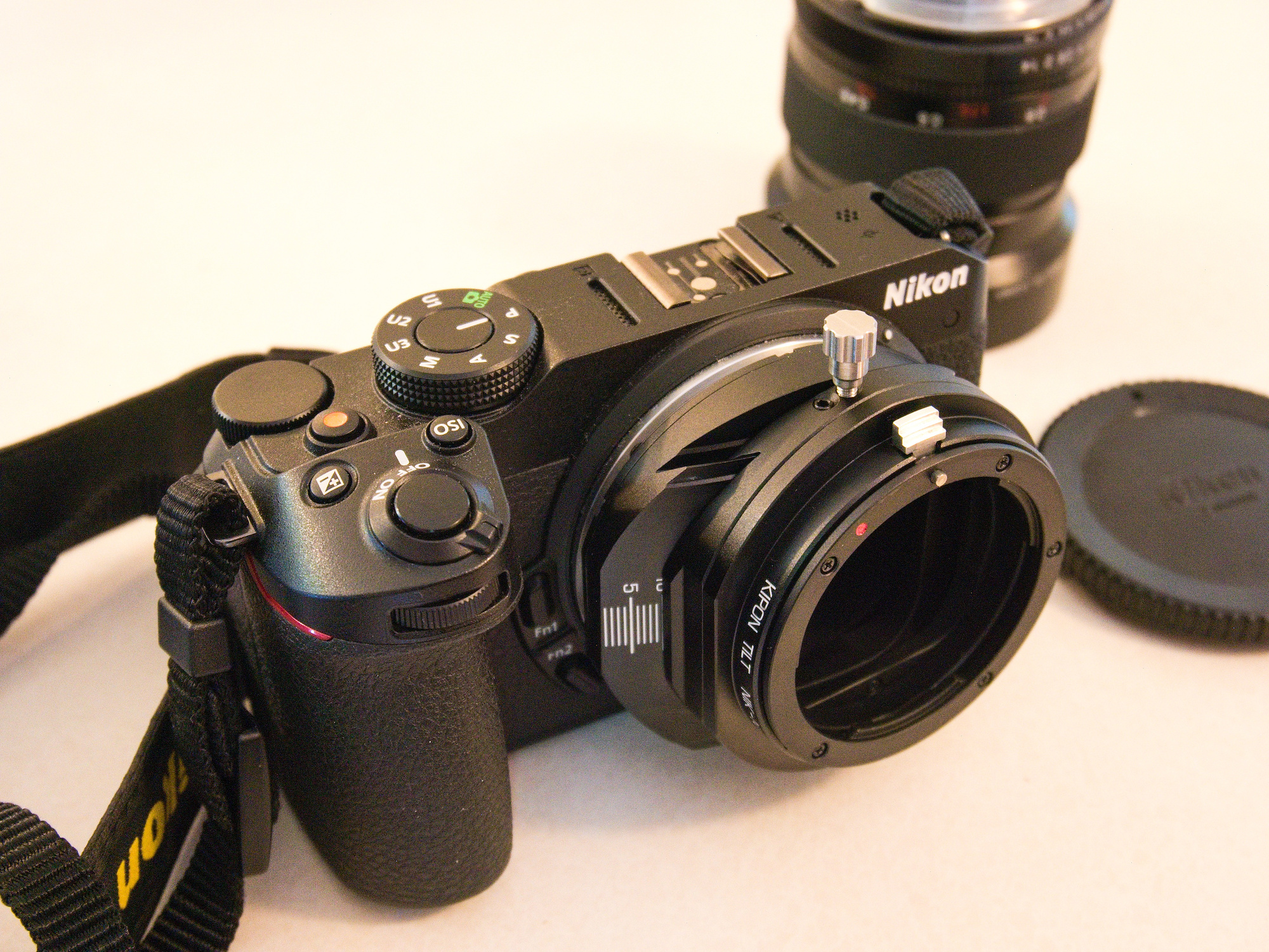

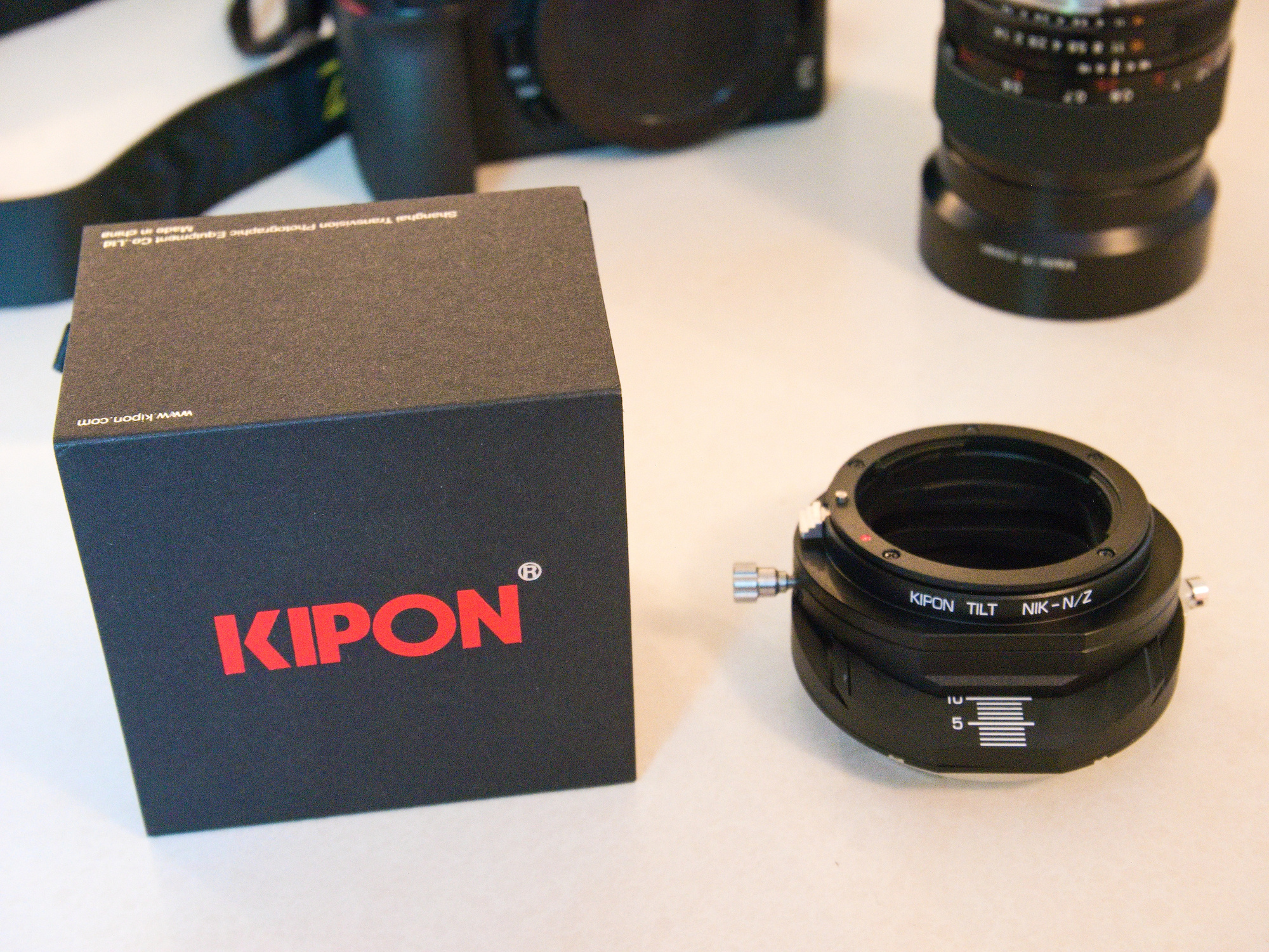

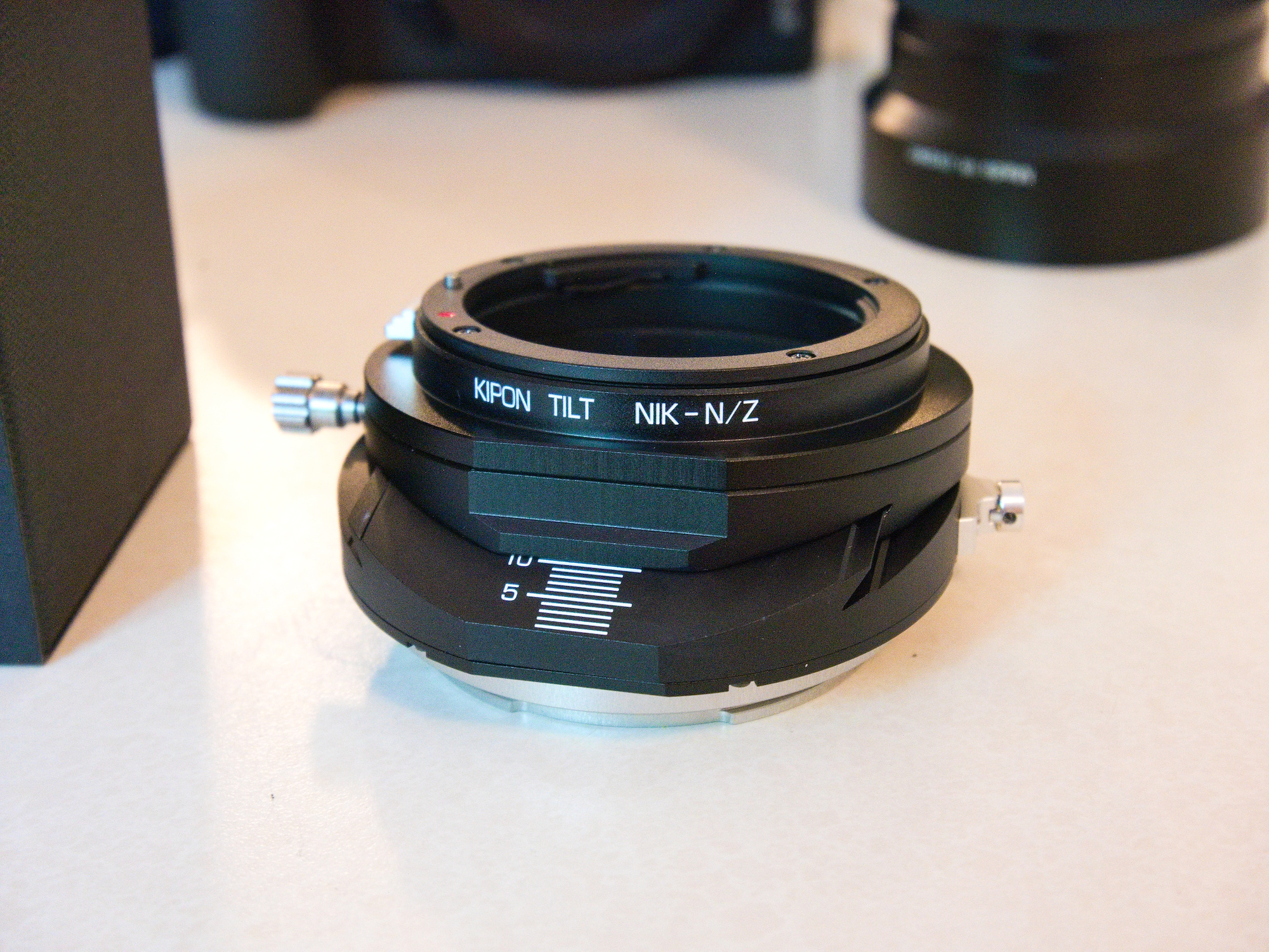

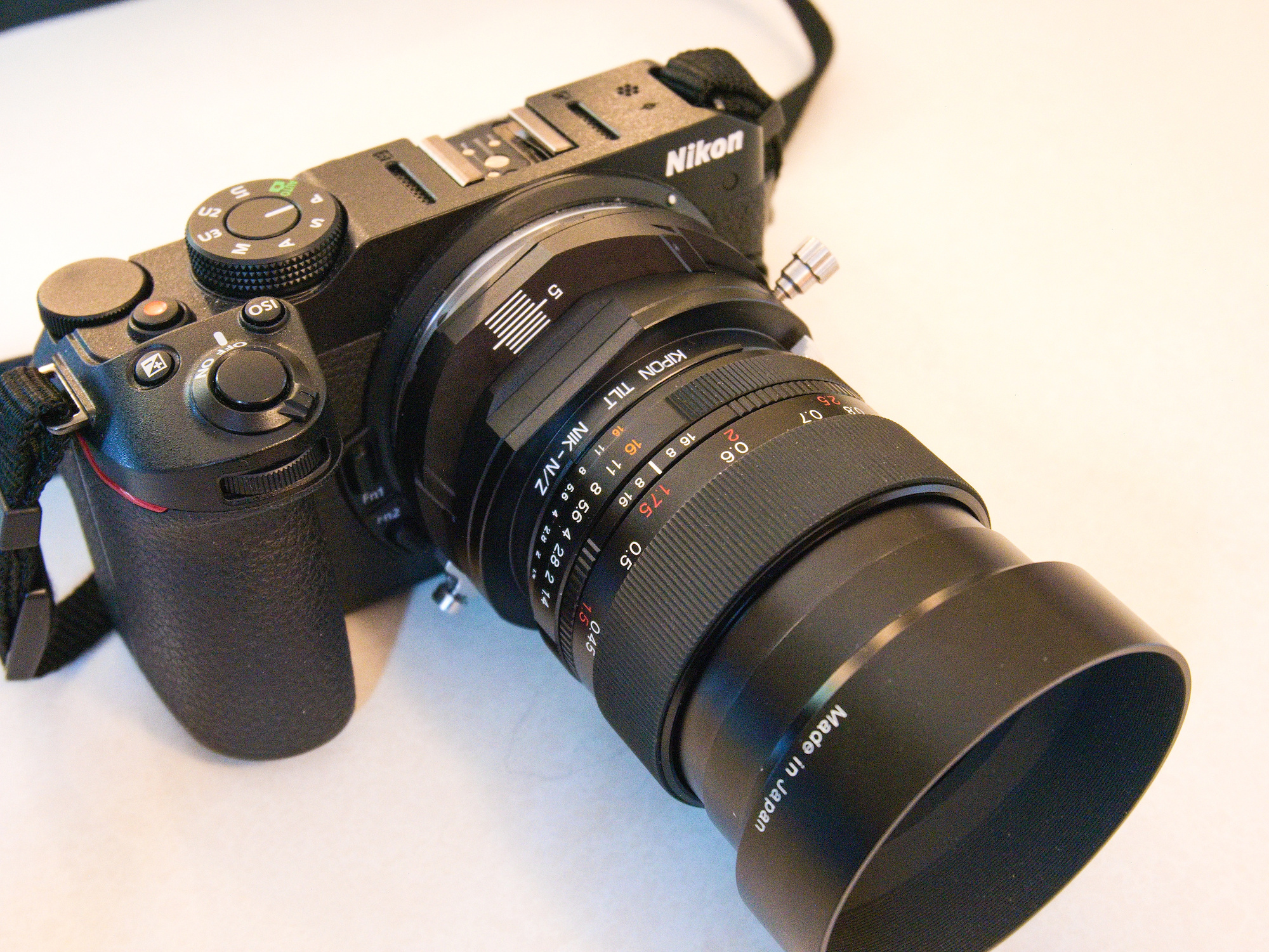

The Kipon F to Z mount tilt adapter arrived:

Feels solid and high quality. Tilting is smooth and has good friction to hold a lens even without using the locking.

The adapter has a max tilt of 12° and can be rotated 360° with 30° click stops. The smaller plunger on the right side is to unlock the click stops during rotate.

For the test, a Voigtländer 58mm f/1.4 SL lens is used:

It really works.

Shelf without tilt:

Shelf with max tilt:

Shelf from an angle without tilt:

Shelf from an angle with max tilt:

Examples with max tilt:

The shift feature of the Tilt-Shift lenses is of little interest as the projection is only a geometric transform in post op. The panorama tools easily take care of this with vertical control points (t2). You can never align the lens that perfect.

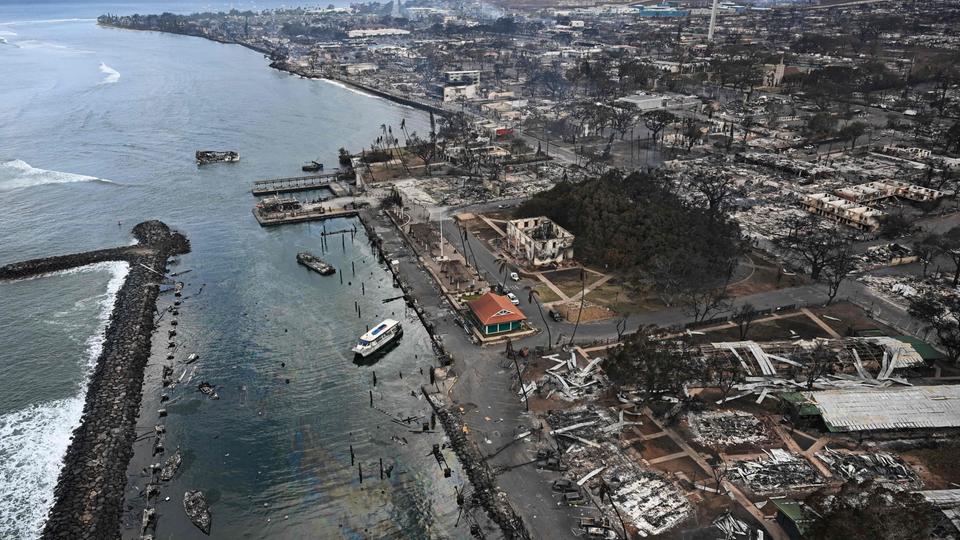

On August 8-9, 2023, a wild fire destroyed parts of West Maui, including the Lāhainā Banyan Court which I had visited shortly before.

This is how the Lāhainā Banyan Court with its 150-year-old banyan tree and the old Court House looked back then:

Interactive Panorama of the Lāhainā Banyan Court

The 360° Little Planet view of the Lāhainā Banyan Court

Northwest corner of the court with the legendary Captain Jack's.

http://www.photosynthesis.co.nz/nikon/lenses.html is an extensive list of all Nikon Lenses, but as a simple web page also limited to data queries.

I created a PowerShell script to download and convert the html page to a JSON file to allow lens data queries.

See https://github.com/jurgen178/NikonLenses for the PowerShell script.

(Permission granted from photosynthesis.co.nz)

Example queries:

# Filter the result for specific lens data.

# Get all 6/2.8 lenses with AI.
$ai = $allLensData.Where({ $_.Type.Contains("Ai") -and $_.Lens -eq "6/2.8" })

# Get all AI-S 6/2.8 lenses.
$ais = $allLensData.Where({ $_.Type -eq "Ai-S" -and $_.Lens -eq "6/2.8" })

# Get all 16mm Fisheye lenses.
$16mmFisheye = $allLensData.Where({ $_.Group -eq "Fisheye" -and $_.Lens.StartsWith("16/") })

# Get all AF lenses out of the 16mm Fisheye lenses.
$AF16mmFisheye = $16mmFisheye.Where({ $_.Type -match "AF" })

# Get all 24-85 lenses.
$24_85 = $allLensData.Where({ $_.Lens.StartsWith("24-85/") })

# Get all light lenses <200g.
$lightLenses = $allLensData.Where({ $_.Weight.Length -gt 0 -and [int](($_.Weight -replace '^(\d+).*$', '$1')) -lt 200 })

# Get all heavy lenses >2000g.
$heavyLenses = $allLensData.Where({ [int](($_.Weight -replace '^(\d+).*$', '$1')) -gt 2000 })

# Get the first 5 heaviest lenses.
$first5heavyLenses = $heavyLenses.GetEnumerator() | Sort-Object { [int]($_.Weight) } -Descending | Select-Object -First 5

# 1200-1700/5.6-8 IF-ED Ai-P (16000g)
# 1000/6.3 Reflex F (9900g)
# 50cm/5 T·C S, M39 (8500g)
# 360-1200/11 ED Ai-S (8250g)
# 2000/11 Reflex A,C (7500g)
foreach ($lens in $first5heavyLenses) {
    "$($lens.Lens) $($lens.Type) ($($lens.Weight)g)"
}

# Get all constant f/2.8 aperture lenses.
$aperture_2_8 = $allLensData.Where({ $_.Lens -match "/2.8(\s|$)" })

# Get all Z mount VR lenses.
$vr = $allLensData.Where({ $_.Type.Contains("Z") -and $_.Lens.Contains("VR") })

# Get all DX lenses out of the Z mount VR lenses.
$vrdx = $vr.Where({ $_.Type -eq "Z DX" })

# Print result.
# 12-28/3.5-5.6 PZ VR Z DX
# 16-50/3.5-6.3 VR Z DX
# 18-140/3.5-6.3 VR Z DX
# 50-250/4.5-6.3 VR Z DX
foreach ($lens in $vrdx) {
    "$($lens.Lens) $($lens.Type)"
}

Or print all lens data.

# Print all lens data by group.
foreach ($lensGroup in $lenses.PsObject.Properties) {
    "$($lensGroup.Name) ($($lensGroup.Value.count))"

    $lensGroup.Name
    foreach ($lens in $lensGroup.Value) {
        $lens
    }
}
